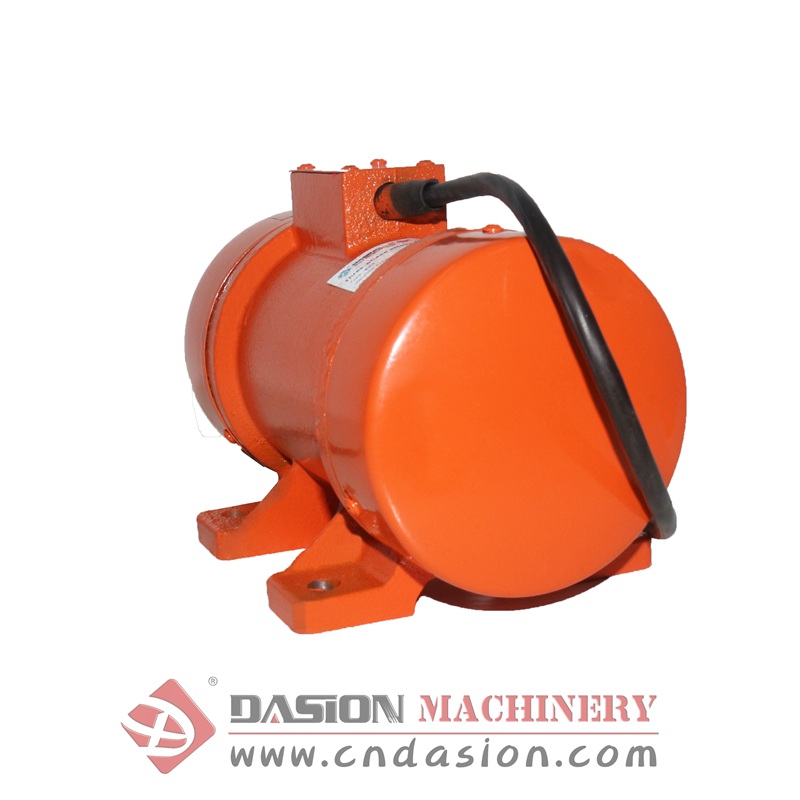

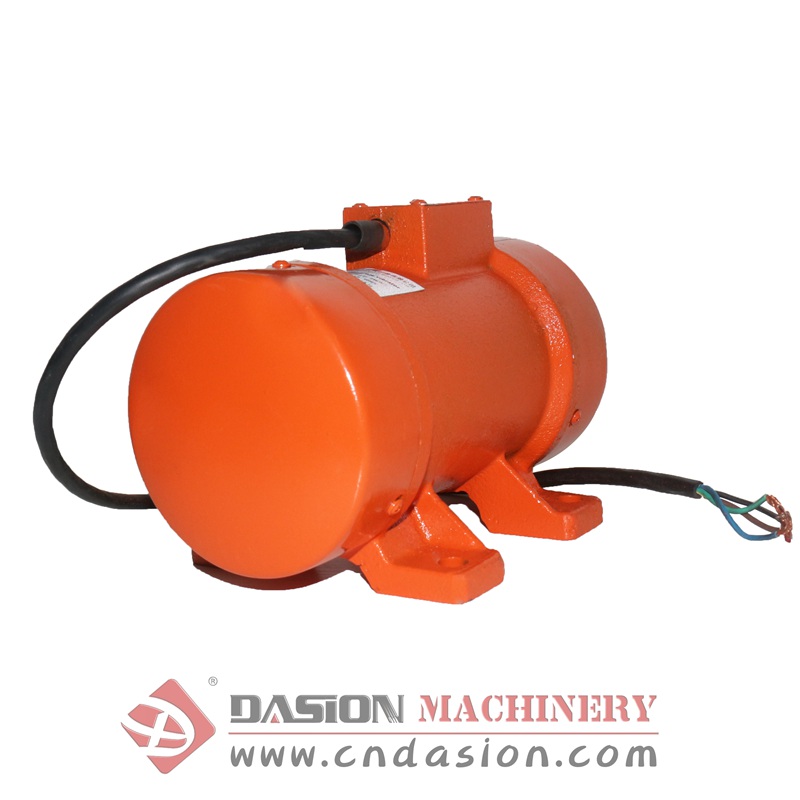

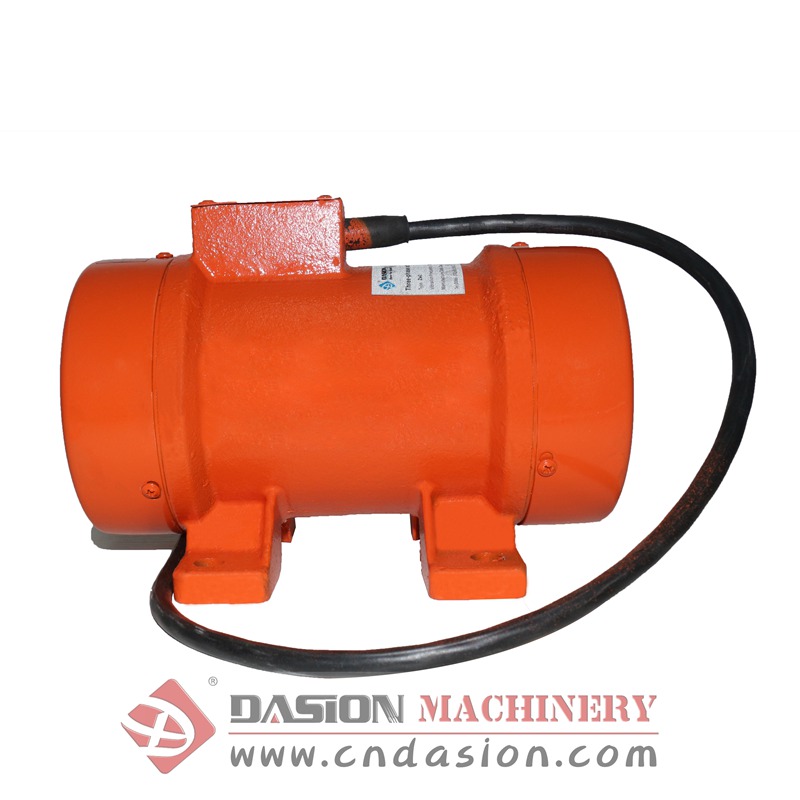

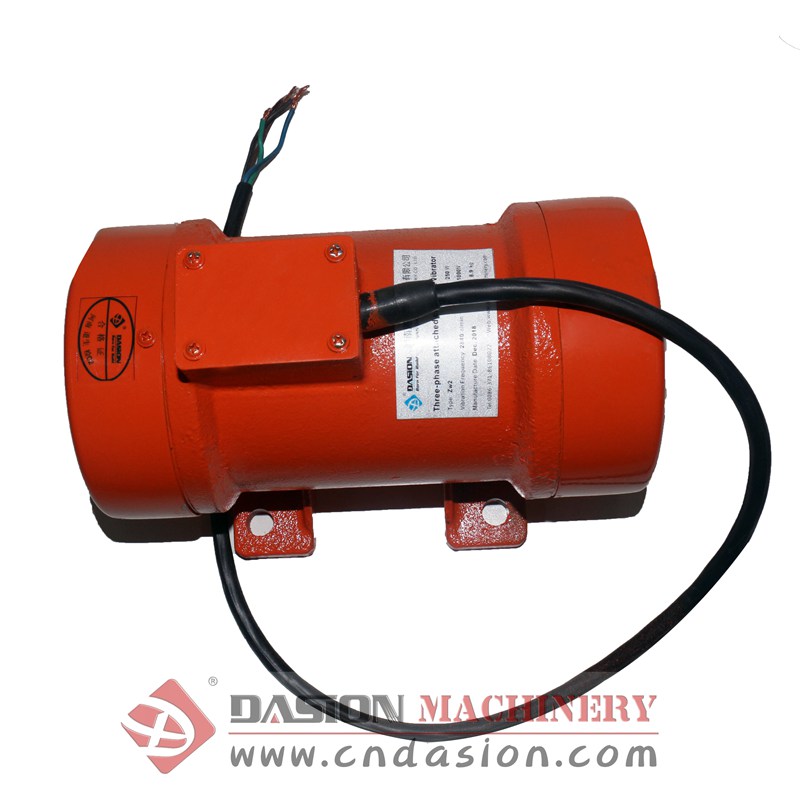

ZF/ZW External Concrete Vibrator

  • Force: 0.5-10 kn
  • Power: 0.12-2.2 kw
  • Weight: 9-38kg

The external vibrators are widely used in the vibration of plastic, semi-plastic, semidry, and dry concrete, suitable tools for the concrete cast of slabs, road surface, ground and roofing in buildings. They can also be used as vibrating source of vibrati

We're here to help: Easy ways to get the answers you need

  • Product Information
  • parameters introduction

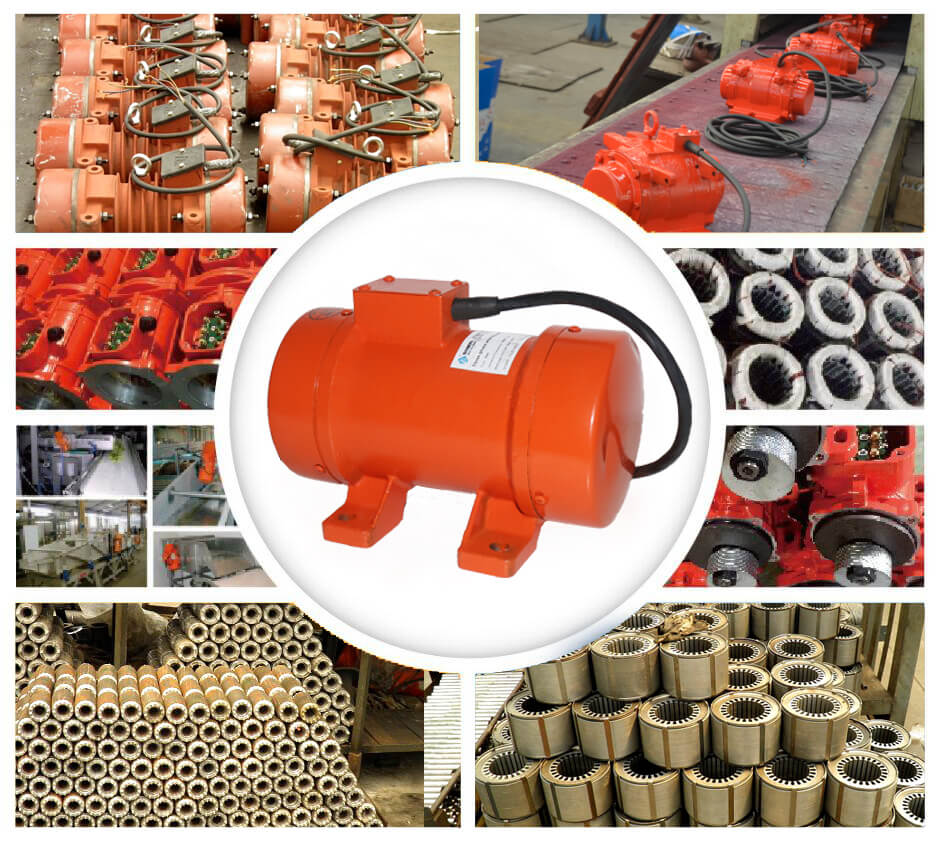

  • Product Details
Introduction of ZF/ZW Series External Concrete Vibrators

The external vibrators are widely used in the vibration of plastic, semi-plastic, semidry, and dry concrete, suitable tools for the concrete cast of slabs, road surface, ground and roofing in buildings. They can also be used as vibrating source of vibrating apparatus. It can continuously operate for a long time.
It uses special vibrating motor with unique eccentric structure. The exciting force can be adjusted for the construction situation.


Parameters of ZF/ZW Series External Concrete Vibrators

No. Model Force(KN) Power(KW) Weight(KG) Installation Size(MM)
A B
1 ZF12 0.5 0.12 9 120 110
2 ZF25/ZW2 2 0.25 11/13 170 160
3 ZF50 4 0.5 18 170 160
4 ZF110/ZW5 5 1.1 23/25 190 194
5 ZF150/ZW7 7 1.5 24/27 190 194
6 ZF220/ZW10 9/10 2.2 34/38 200 220
