HZS35 Concrete Batching Plant

  • Equipment Type: Bucket Feeding
  • Model : HZS35 concrete plant
  • Productivit: 35m3/hr
  • Warranty: 12 months after erection
  • Origin: DASION/CHINA
  • After-sale service: Erection & commissioning, operator training

DASION 35m3/hr concrete batching plant consists of material batching, mixing and electric control system, etc. Concrete batching plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.

We're here to help: Easy ways to get the answers you need

concrete mixer
concrete batching plant
Self-loading concrete truck mixer
concrete pump
concrete plant optional parts
concrete vibrator
  • Product Information
  • parameters introduction
  • Product Details

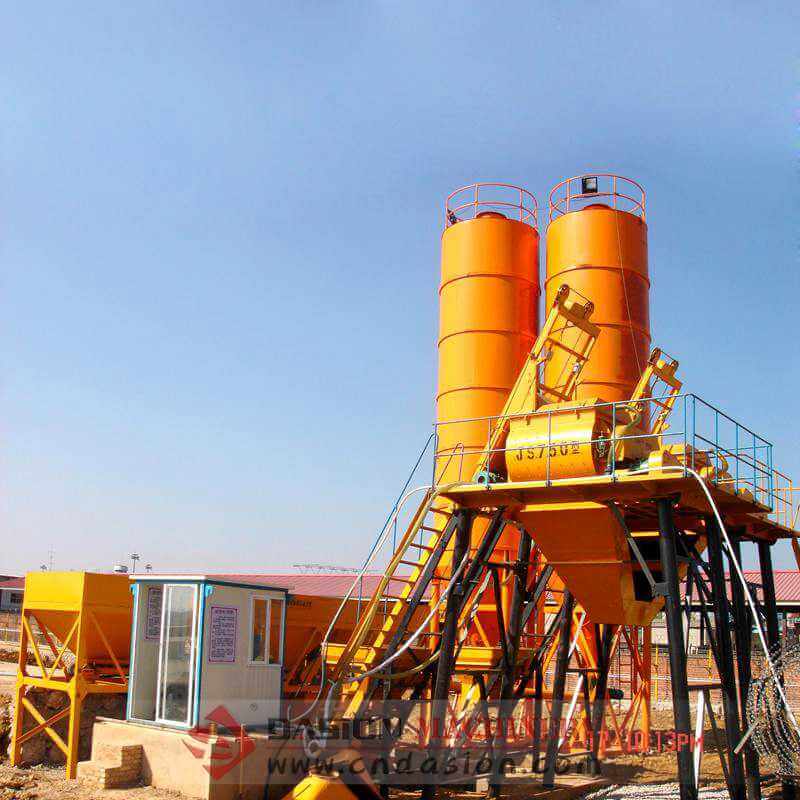

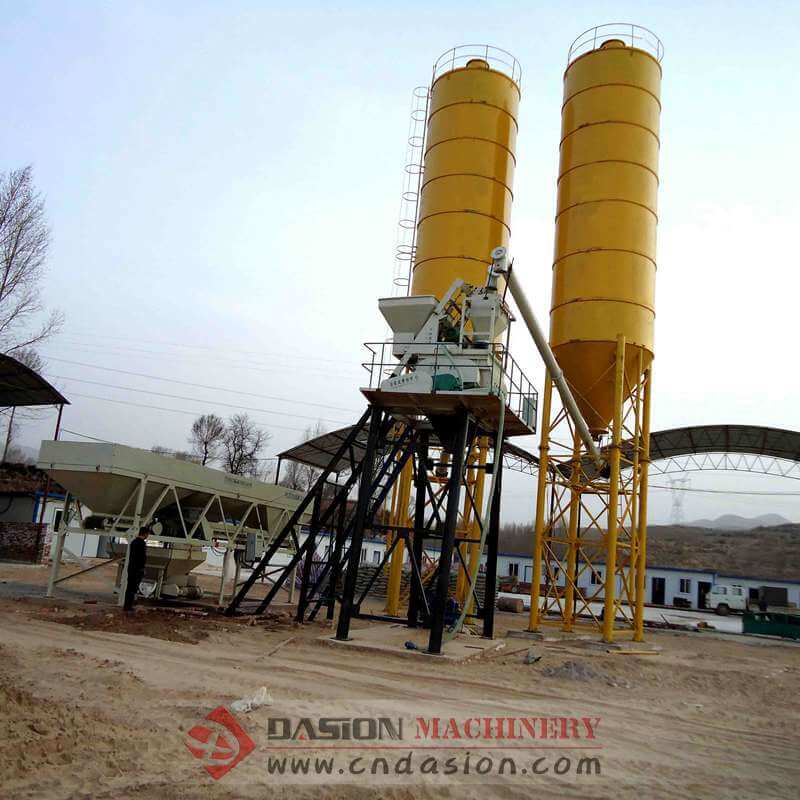

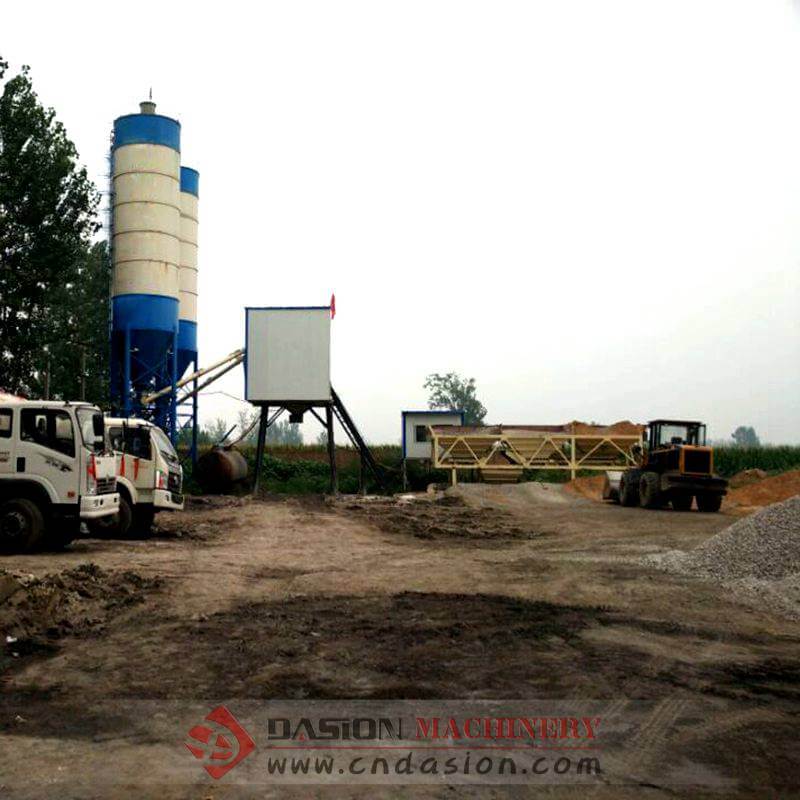

Brief Introduction Of HZS35 Concrete Batching Plants

DASION HZS35 concrete batching plant (35m3/h) consists of material batching, mixing and electric control system, which is professional equipment for ready mix concrete production, such as plasticity/dry concrete.
DASION concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.




 Parameters Of  HZS35 Concrete Batch Plants
Model HZS35
Capacity 35m3/h
Mixing system Twin-shaft concrete mixer
Aggregate feeder Bucket (Skip hopper)
Discharging height 3800mm
After-sale service Erection & commissioning, operator training
Warranty 12 months after erection

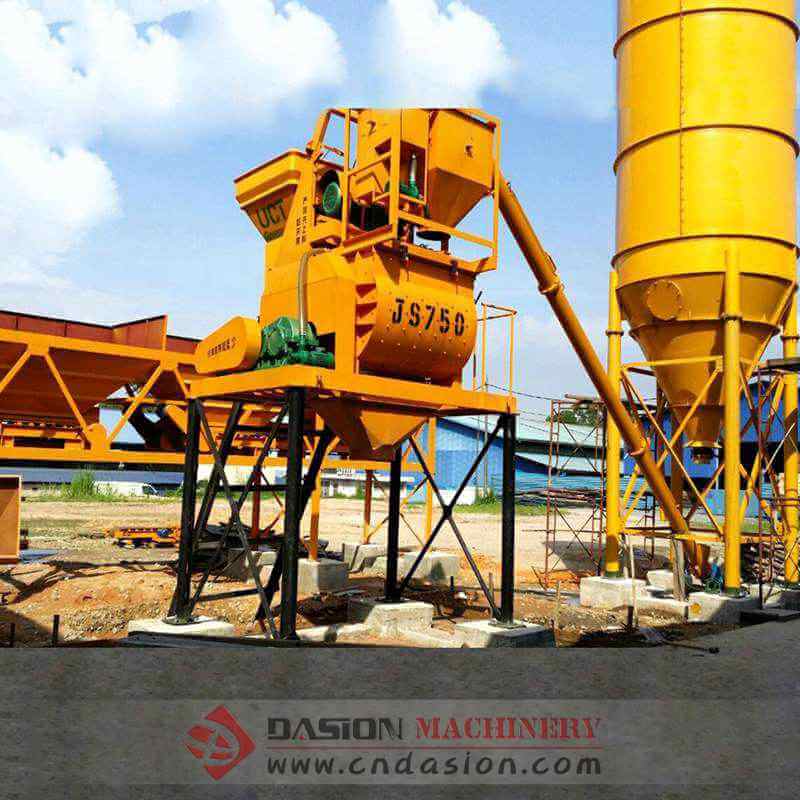

Concrete mixer JS750
Mixing cycle 72s
Aggregate batching machine PLD1200
Weighing system Water, Cement, Additive
Weighing precision ±1%
Air system Air compressor, etc
Control system Type Computer auto-control module （PLC can be optional item)
Control panel board Buttons, lamps, indicators, etc
Electric components China CHINT, German SCHNEIDER (option)
Control room With Air conditioner, ≈6m2
Documentation Foundation layout, Electrical diagram, Operation manual
Parameters Of  HZS35 Concrete Batch Plants
Model HZS35
Capacity 35m3/h
Mixing system Twin-shaft concrete mixer
Aggregate feeder Bucket (Skip hopper)
Discharging height 3800mm
After-sale service Erection & commissioning, operator training
Warranty 12 months after erection
Concrete mixer JS750
Mixing cycle 72s
Aggregate batching machine PLD1200
Weighing system Water, Cement, Additive
Weighing precision ±1%
Air system Air compressor, etc
Control system Type Computer auto-control module （PLC can be optional item)
Control panel board Buttons, lamps, indicators, etc
Electric components China CHINT, German SCHNEIDER (option)
Control room With Air conditioner, ≈6m2
Documentation Foundation layout, Electrical diagram, Operation manual




Working Principle Of HZS35 Concrete Mixing Plant

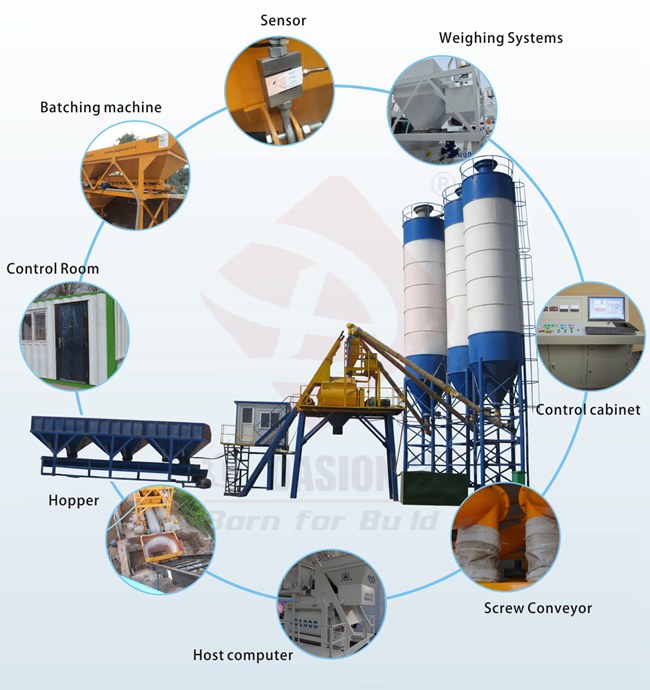

Concrete batching plant has 4 main parts: Material feeding, Material measurement, Concrete mixing and whole plant control system.
The working procedure of automatic control system is

1. Turn on control software, login to operation interface;
2. Set or access working parameters of concrete production, such as recipe number, concrete grade, slump, total production volume, etc.
3. Start production;
4. The software/PLC will give signal to each part of the plant, to finish the material feeding, measurement, loading into the concrete mixer, mixing and discharging;
5. If there are some problems during production, the software will detect the error and light up alarm lamp on computer screen or indicator display, so that the operator can stop the production till problems solved.
6. Regarding to the material feeding, the various of electric motors, butterfly valves and load cells will work automatically according to digital signal;
7. High-pressure air system will provide enough driving force for each unloading gates, such as aggregate bins, butterfly valve of scale hoppers, concrete mixer discharging gate, etc.
8. The software will control the whole system continuously produce concrete till the set-volume finished production, unless emergency stop or turn to Manual style.
