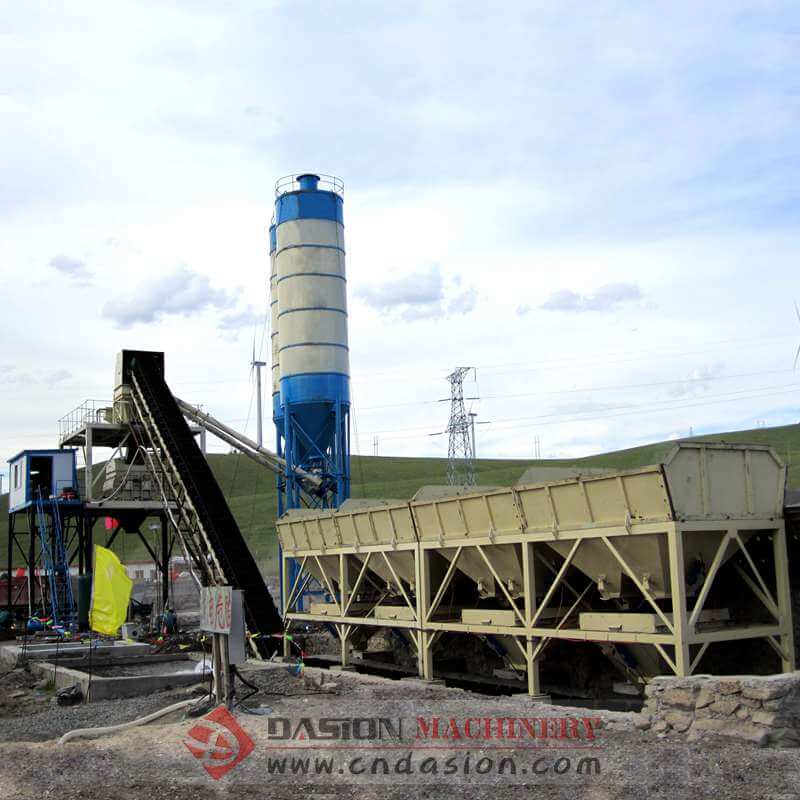

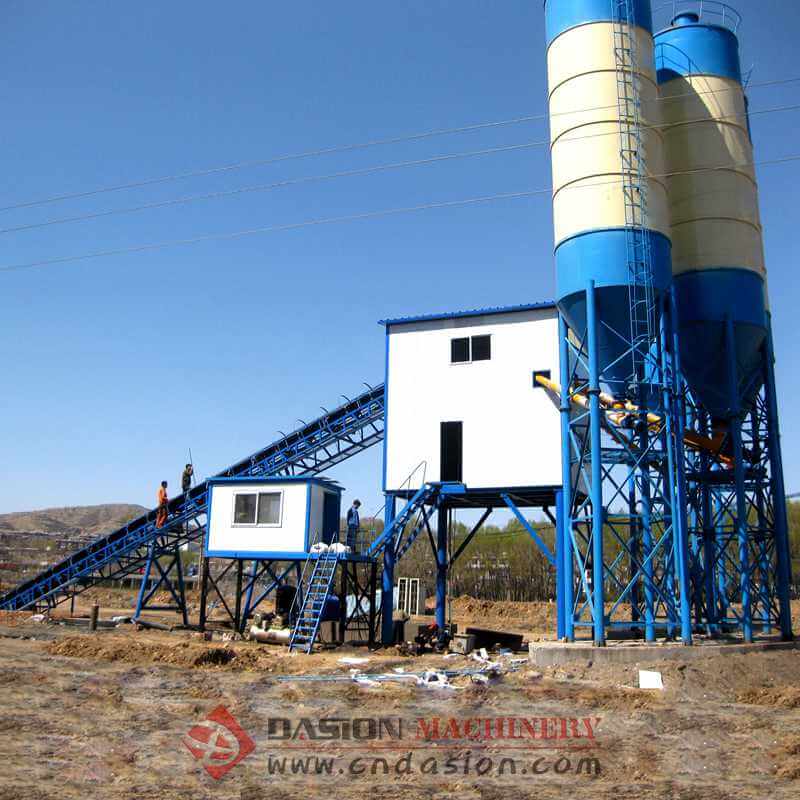

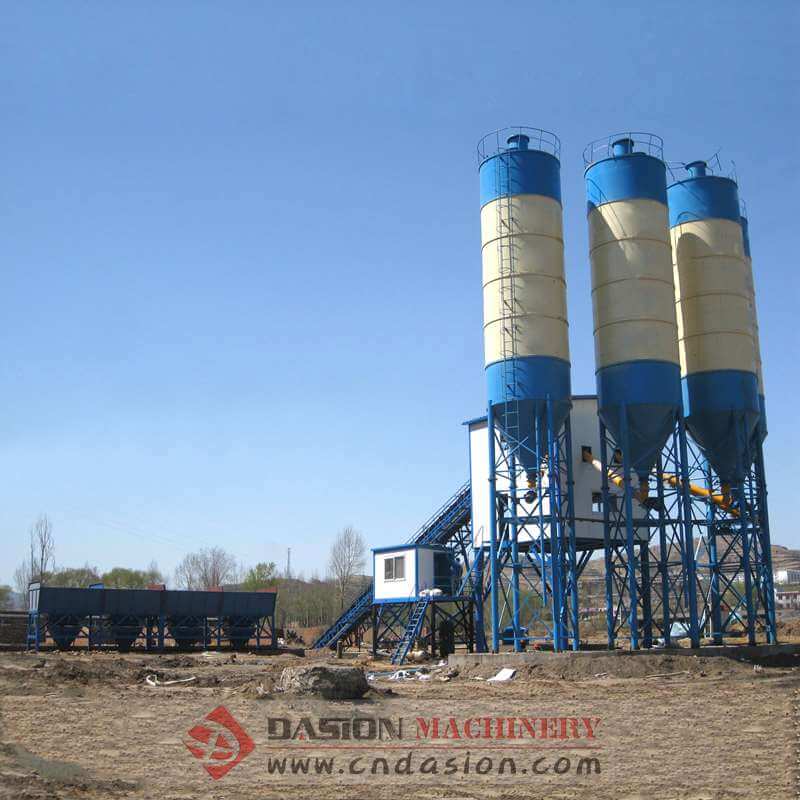

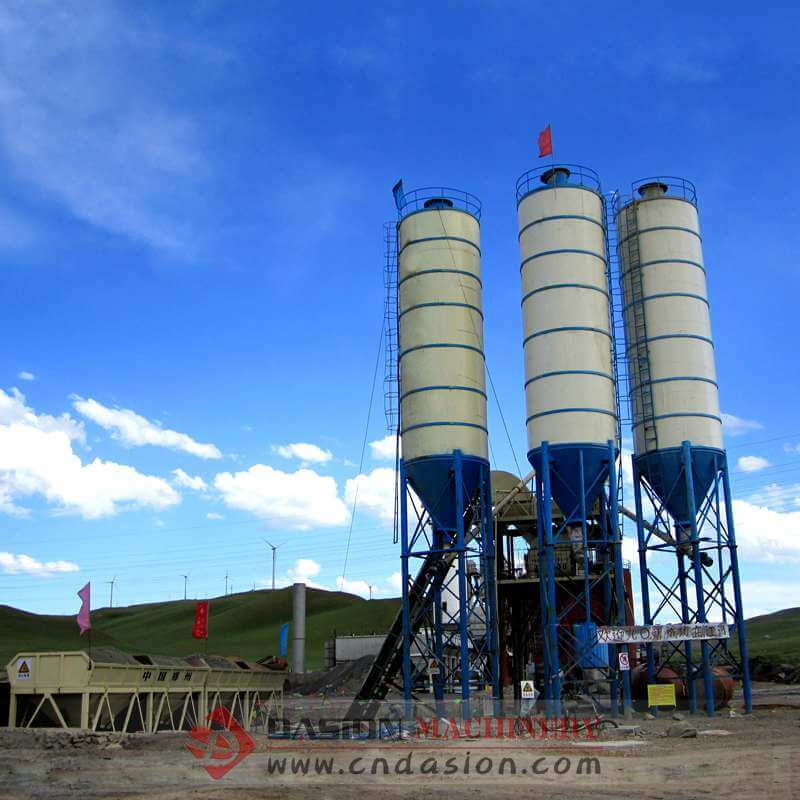

HZS90 Concrete Batching Plant

  • Equipment Type: Belt Feeding
  • Model: HZS90 concrete plant
  • Productivity: 90 m3/hr
  • Warranty: 12 months
  • Origin: DASION/CHINA

DASION 90m3/hr concrete batching plant

We're here to help: Easy ways to get the answers you need

concrete mixer
concrete batching plant
Self-loading concrete truck mixer
concrete pump
concrete plant optional parts
concrete vibrator
  • Product Information
  • parameters introduction
  • Product Details
Brief Introduction Of HZS90 Concrete Batching Plants

DASION HZS90 concrete batching plant (90m3/h) consists of material batching, mixing and electric control system. DASION assemble high performance separated control room, which includes control panel, power cabinet, air conditioner, Printer, etc. That will make the plant operation easily, safe and speedy, but also produce high quality concrete because of more accurate material measurement.
DASION concrete batching plant is widely used in big and medium construction projects, road, bridge project, and concrete prefabrication factory.

Parameters Of Concrete Batch Plants
Model HZS90
Capacity 90m3/h
Mixing system Twin-shaft concrete mixer
Aggregate feeder Belt conveyor
Discharging height 3800mm
After-sale service Erection & commissioning, operator training
Warranty 12 months after erection
Concrete mixer YJS1500/ SICOMA 1500
Mixing cycle ≦60s
Aggregate batching machine PLD2400
Weighing system Water, Cement, Fly-ash, Additive
Weighing precision ±1%
Air system Air compressor, etc
Control system Type Computer auto-control module with PLC
Control panel board Buttons, lamps, indicators, CCTV, etc.
Electric components China CHINT, German SCHNEIDER (option)
Control room With Air conditioner, ≈10m2
Documentation Foundation layout, Electrical diagram, Operation manual, Spare parts list
Working Principle Of Concrete Batching Plants

Concrete batch plant has 4 main parts: Material feeding, Material measurement, Concrete mixing and whole plant control system.
The working procedure of automatic control system is
1. Turn on control software, login to operation interface;
2. Set or access working parameters of concrete production, such as recipe number, concrete grade, slump, total production volume, etc.
3. Start production;
4. The software/PLC will give signal to each part of the plant, to finish the material feeding, measurement, loading into the concrete mixer, mixing and discharging;
5. If there are some problems during production, the software will detect the error and light up alarm lamp on computer screen or indicator display, so that the operator can stop the production till problems solved.
6. Regarding to the material feeding, the various of electric motors, butterfly valves and load cells will work automatically according to digital signal;
7. High-pressure air system will provide enough driving force for each unloading gates, such as aggregate bins, butterfly valve of scale hoppers, concrete mixer discharging gate, etc.
8. The software will control the whole system continuously produce concrete till the set-volume finished production, unless emergency stop or turn to Manual style.
