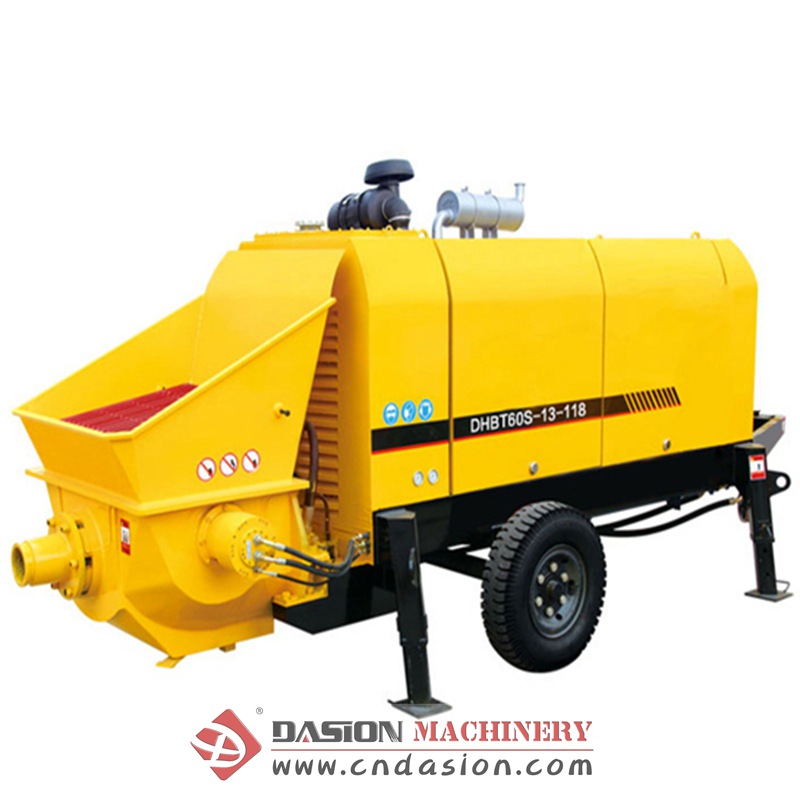

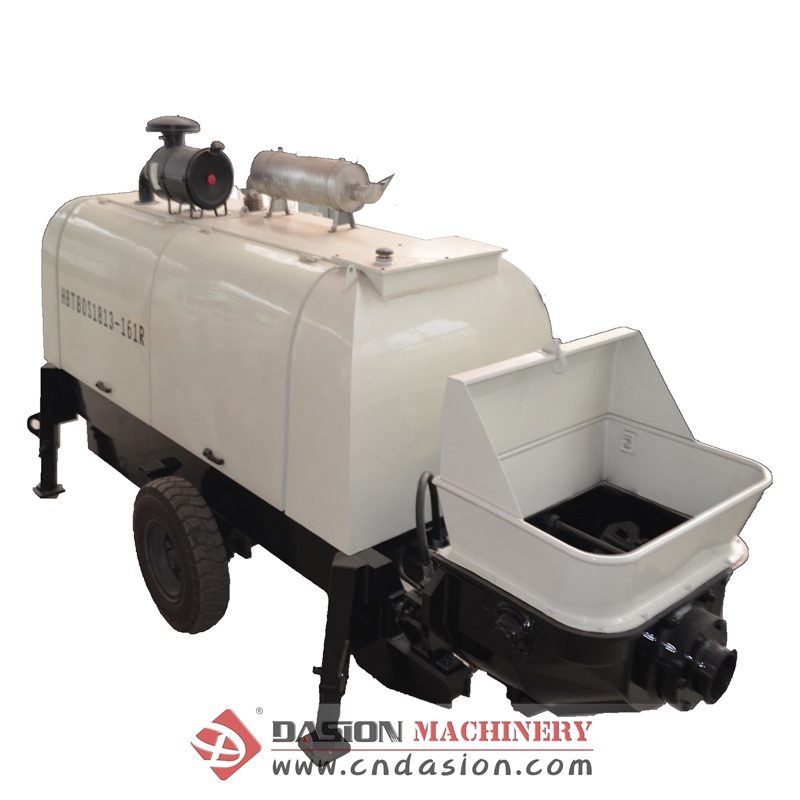

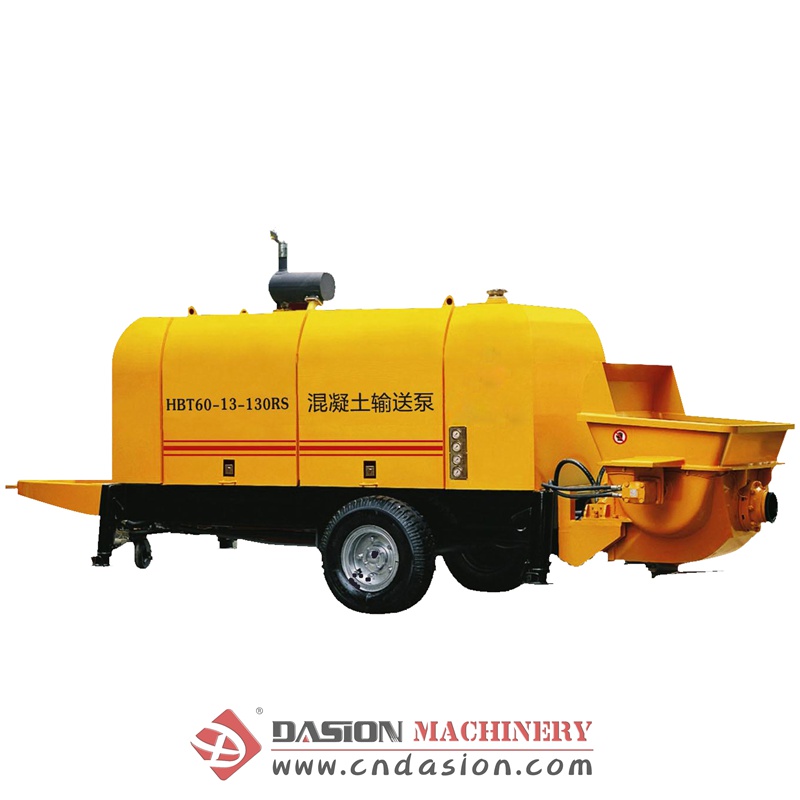

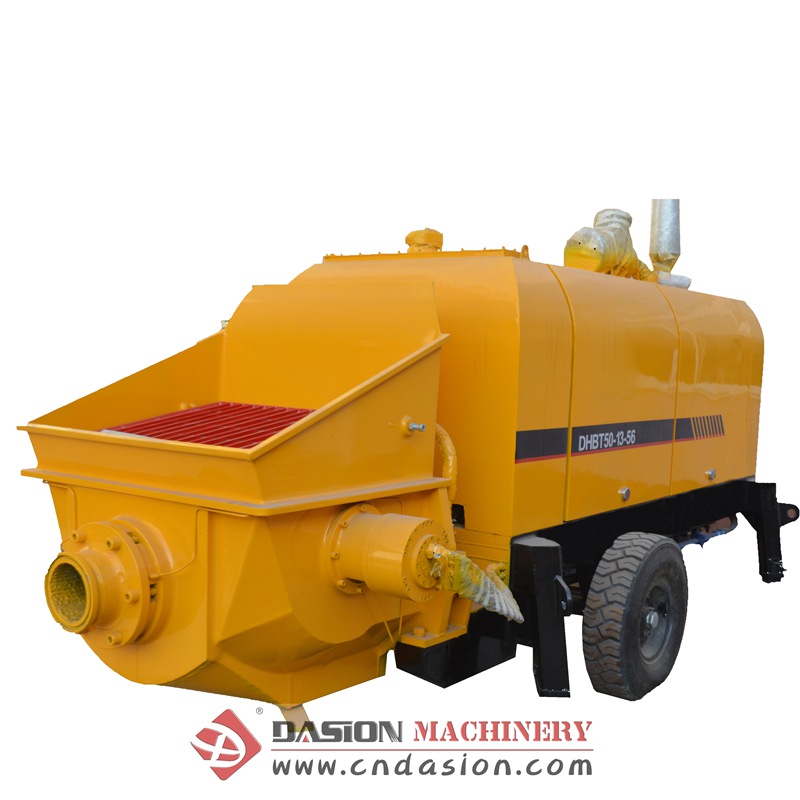

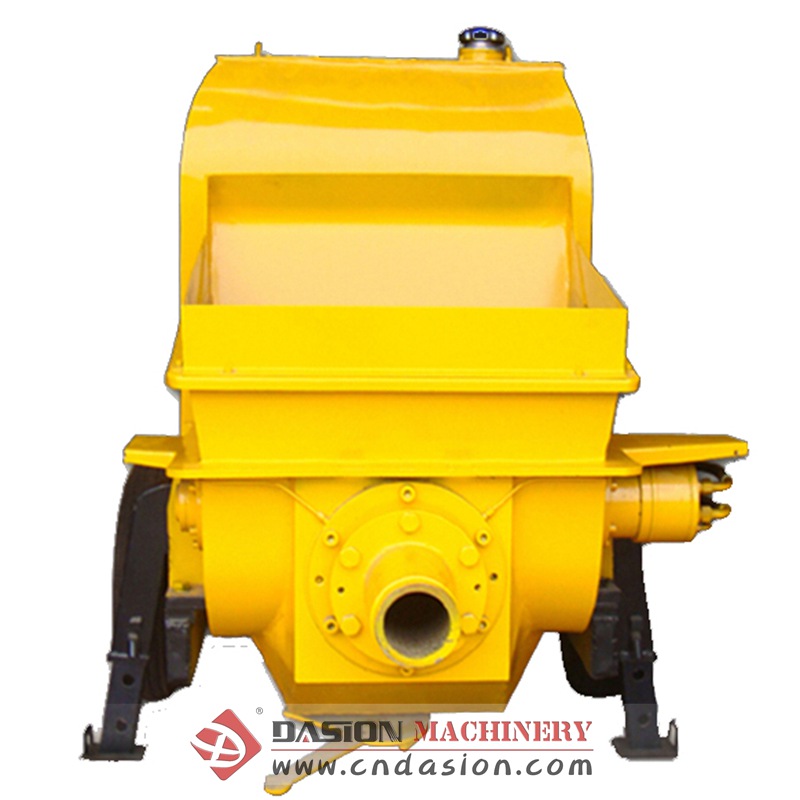

DHBT Diesel Concrete Trailer Pump

Rated Speed: 2200-2300r/min
Diesel Engine Power: 56-174KW
Max. Theoretic Delivery Volume: 40-80m³/h
Max. Theoretic Delivery Pressure: 8-15.7Mpa
Max. Theoretic Delivery Height: 120-250m
Max. Theoretic Delivery Distance: 300-1000m

DHBT Diesel Engine Concrete Trailer Pumps are concrete transport machines, which are widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities and so on.

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC/JZM Portable Concrete Mixer JZM Electrical Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

Self-loading concrete truck mixer

DS0.5F Self Loading Concrete Mixer DS1.0F Self-loading Concrete Mixer DS1.5 Self Loading Concrete Mixer DS2.0 Self Loading Concrete Mixer DS4.0 Self Loading Concrete Mixer Concrete Truck Mixer

concrete pump

JBT/DJBT Concrete Mixer Pump HBT Motor Concrete Trailer Pump DHBT Diesel Concrete Trailer Pump Concrete Boom Pump

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

MV Electrical Motor Vibrator ZF/ZW External Concrete Vibrator ZN Inserted Concrete Vibrator

Product Information
parameters introduction
Product Details

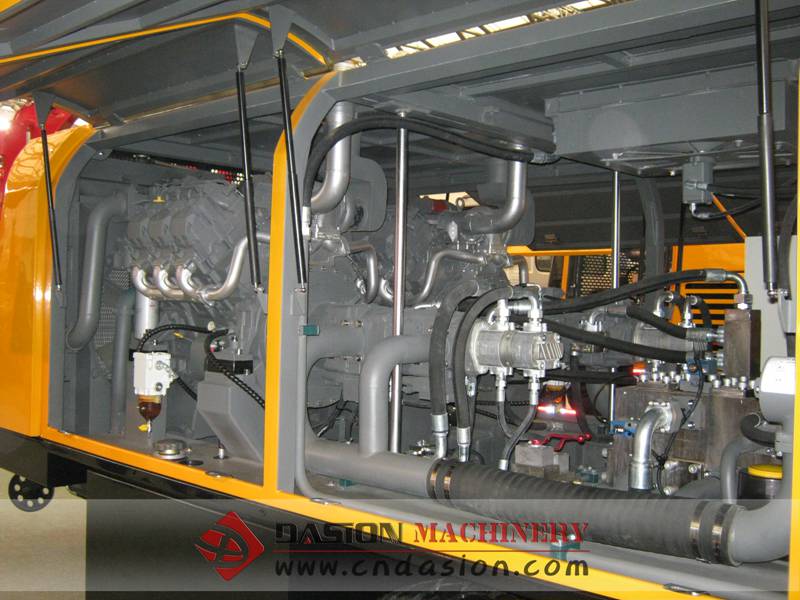

Brief Introduction Of DHBT Diesel Engine Concrete Trailer Pump

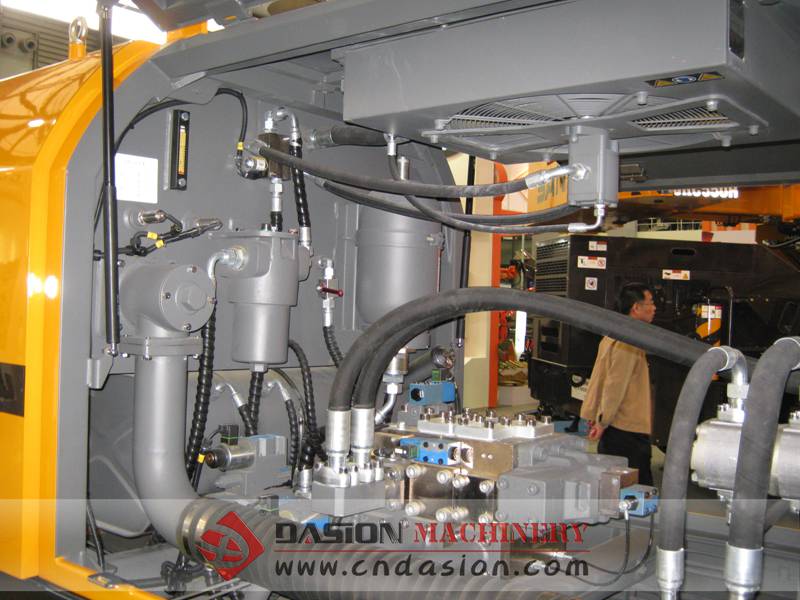

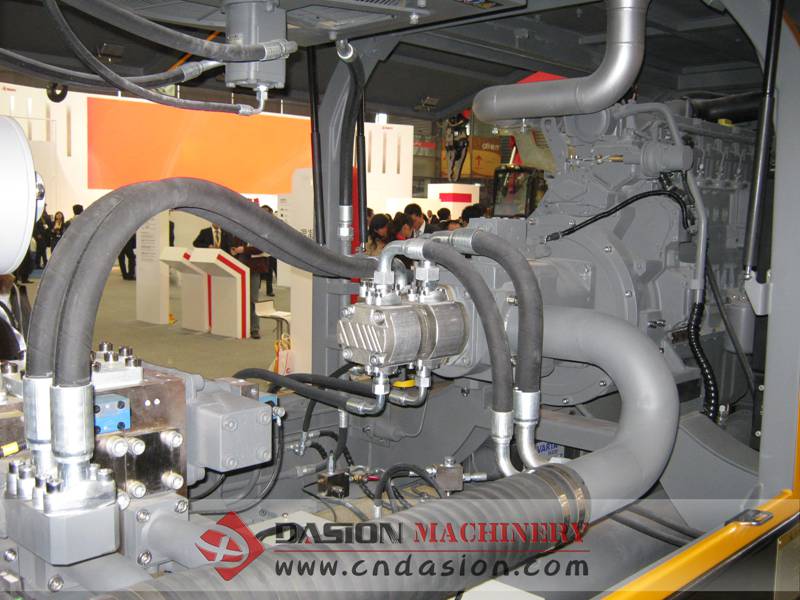

DHBT Diesel Engine Concrete Trailer Pumps are concrete transport machines, which are widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities and so on. The machines adopt world-level advanced technologies such as open hydraulic loop, distributing valve auto-compensation clearance, constant power control, all-hydraulic automatic reverse and electric proportional control. DASION has carried out in-depth and meticulous studies and experiments in many aspects like the self-lubrication of concrete pistons, which can fully meet the various needs of all customers. All trailer pumps are assembled through streamlined production. DASION strictly controls all the machining processes and the assembly quality, giving final test to every trailer pump through simulated working conditions and overload experiments to ensure zero-fault in customers’ first operation.

Item	Unit	DHBT40S-10-56	DHBT50S-10-56	DHBT60-13-118	DHBT60-16-145	DHBT80-13-145	DHBT80-16-174
Max. Theoretic Delivery Volume	m³/h	40	50	60	60	80	80
Max. Theoretic Delivery Pressure	Mpa	8	8	12.5	15.7	12.5	15.7
Max. Theoretic Delivery Height	m	120	150	180	250	180	250
Max. Theoretic Delivery Distance	m	300	350	700	1000	700	1000
Oil Tank Capacity	L	260	300	420	420	420	420
Hopper Capacity	L	400	500	600	600	600	600
Feeding Height	mm			1400	1400	1400	1400
Outlet Opening Diameter	mm	Φ125	Φ150	Φ150	Φ150	Φ150	Ф150

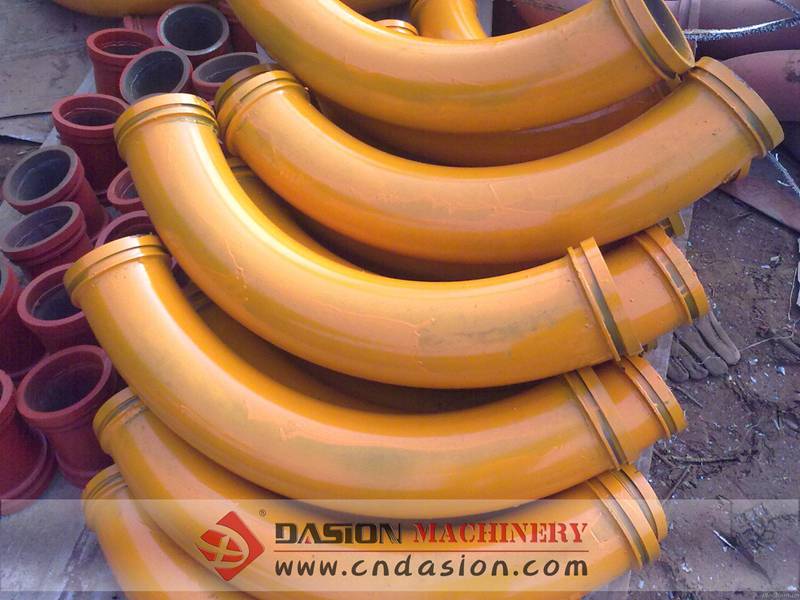

Inner Diameter Of Delivery Pipe	mm	Φ125/Φ100/Φ80	Φ125	Φ125	Φ125	Φ125	Ф125
Diesel Engine Power	Kw	56	56	118	145	145	174
Rated Speed	r/min	2200	2200	2300	2300	2300	2300
Max. Mixing Speed	r/min	40	24	24	24	24	24
Overall Weight	Kg	3200	4000	5500	6000	6000	6500
Pulling Speed	Km/h	≤8	≤8	≤8	≤8	≤8	≤8
