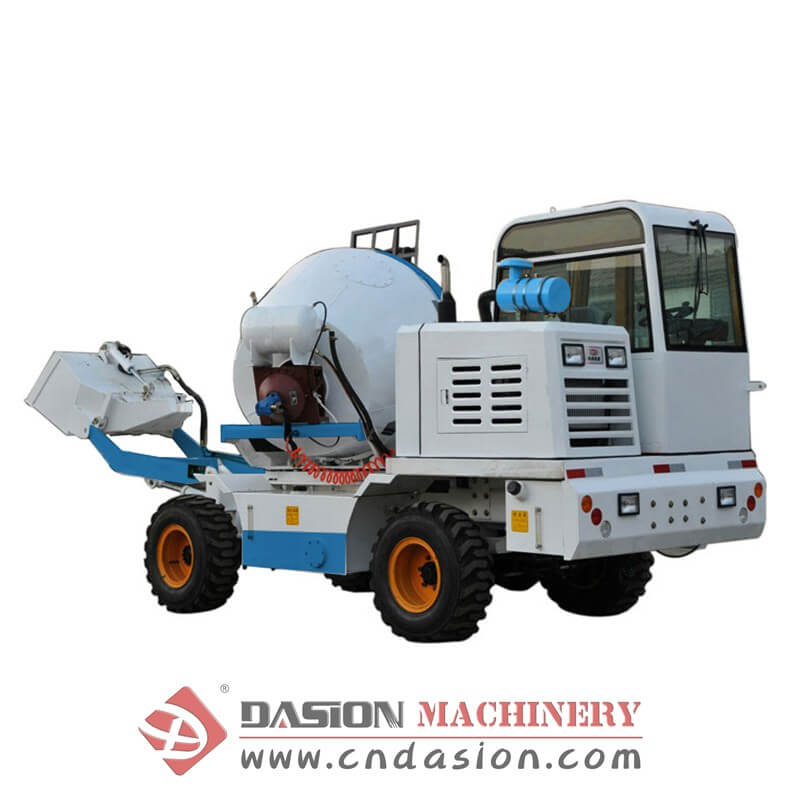

DS0.5F Self Loading Concrete Mixer

Rated bucket capacity: 0.17m3
Rated tank capacity : 0.5m3
Total weight : 3.5t
Drum mixing time : 50±0.3s
Engine rated power : 40kw
Dimension(L*W*H): 3660*1820*2800mm

DS0.5F Self Loading Concrete Mixer Truck is an on-site construction vehicle that combine features with concrete batch processing equipment, concrete transport and concrete mixing station. A small concrete station can easily formed by 2 mobile concrete mix

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC/JZM Portable Concrete Mixer JZM Electrical Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

Self-loading concrete truck mixer

DS0.5F Self Loading Concrete Mixer DS1.0F Self-loading Concrete Mixer DS1.5 Self Loading Concrete Mixer DS2.0 Self Loading Concrete Mixer DS4.0 Self Loading Concrete Mixer Concrete Truck Mixer

concrete pump

JBT/DJBT Concrete Mixer Pump HBT Motor Concrete Trailer Pump DHBT Diesel Concrete Trailer Pump Concrete Boom Pump

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

MV Electrical Motor Vibrator ZF/ZW External Concrete Vibrator ZN Inserted Concrete Vibrator

Product Information
parameters introduction
Product Details

Brief Introduction of DS0.5F Self Loading Concrete Mixer

DS1.5/1.5F self loading concrete mixer is an on-site construction vehicle that combine feature with concrete batch processing equipment, concrete transport and concrete mixing station.
Put cement, sand and gravel into the drum and let the mobile concrete mixing station do the rest.
A small concrete station can easily formed by 2 mobile concrete mixer, 1 cement tank and 1 water tank.

Self Propelled Concrete Mixing System

Easy operating control

High efficiency

Mixer and Loader joint together perfectly

One year warranty

Articulated Steering Mode

Please fill in your procurement needs and contact information

No.	Items		Parameters
1	Dimension(LWH)mm		366018202800
2	Axle distance (mm)		2060±15
3	Wheelbase (mm)		1820±15
4	Minimum ground clearance (mm)		260±10
5	Rated bucket capacity (m3)		0.17
6	Rated tank capacity (m3)		0.5
7	Total weight (t)		3.5
8	Boom lifting time (s)		5.5±0.2
9	Drum mixing time (s)		50±0.3
10	Minimum turning radius	Front wheel outsite	5000±50
11	Body steering Angle		35°±1°
12	Climbing angles≤		20°
13	Rear bridge swing angle		±12°
14	Engine	Model	490
		Type	in-line engine、water-cooled engine、 four-stroke engine、direct injection engine
		Rated power (kw)	40
15	Torque converter model		240
16	Tire model		20.5-16
17	Drive mode		infinitely variable speeds
18	Setting voltage		24V
