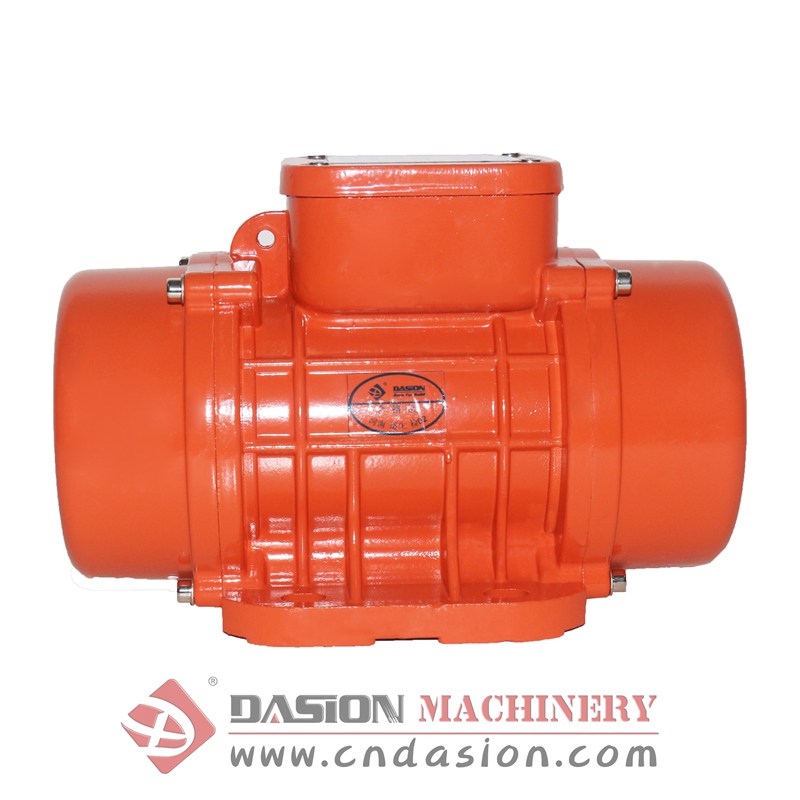

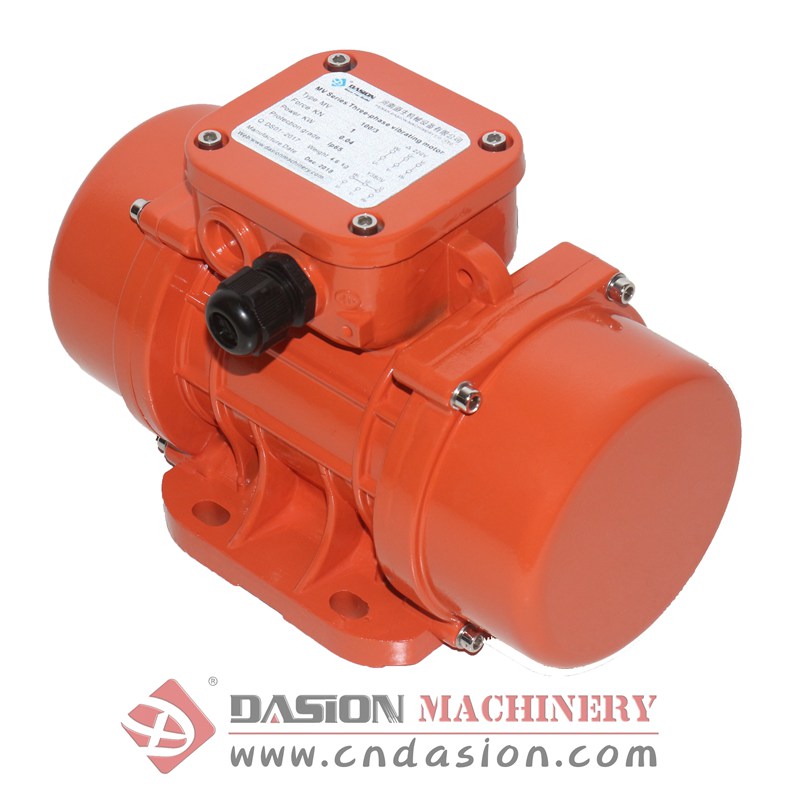

MV Electrical Motor Vibrator

Force: 0.3-40kn
Power: 0.05-4kw
Weight: 4-112kg

The motor vibrators are widely used in vibrator feeder, construction materials, sand and cement screening, material milling, flow conveyor, vibration separator, hopper emptying, bin activator etc.

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC/JZM Portable Concrete Mixer JZM Electrical Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

Self-loading concrete truck mixer

DS0.5F Self Loading Concrete Mixer DS1.0F Self-loading Concrete Mixer DS1.5 Self Loading Concrete Mixer DS2.0 Self Loading Concrete Mixer DS4.0 Self Loading Concrete Mixer Concrete Truck Mixer

concrete pump

JBT/DJBT Concrete Mixer Pump HBT Motor Concrete Trailer Pump DHBT Diesel Concrete Trailer Pump Concrete Boom Pump

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

MV Electrical Motor Vibrator ZF/ZW External Concrete Vibrator ZN Inserted Concrete Vibrator

Product Information
parameters introduction
Product Details

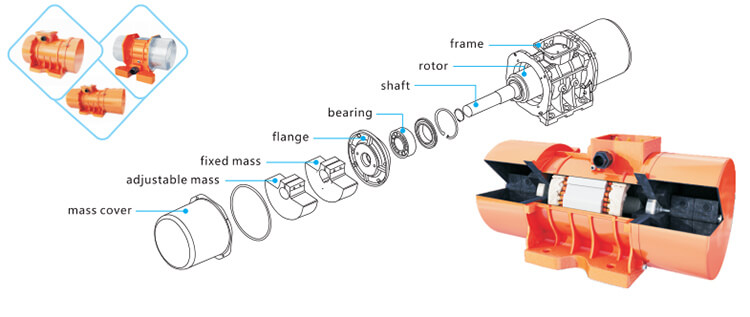

Introduction of of MV Series Electrical Motor Vibrator

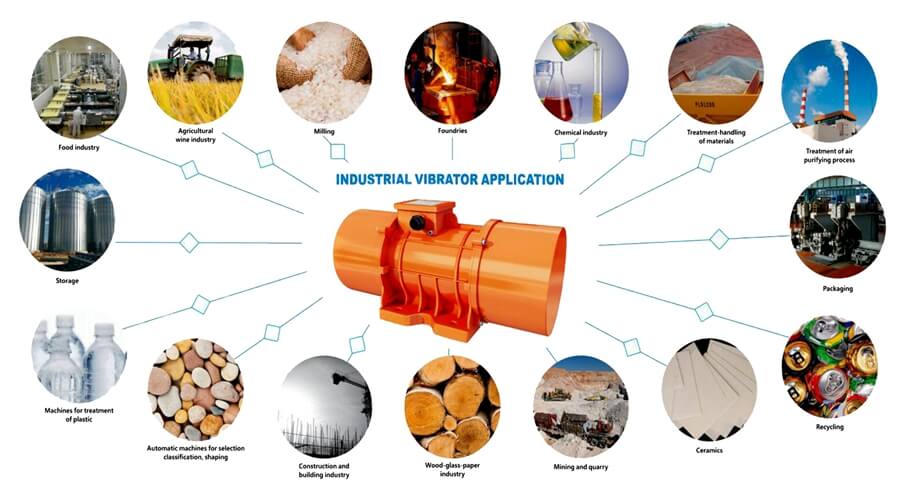

The motor vibrators are widely useed in vibrator feeder, construction materials, sand and cement screening, material milling, flow conveyor, vibration separator, hopper emptying, bin activator etc.

Parameters of MV Series Electrical Motor Vibrator

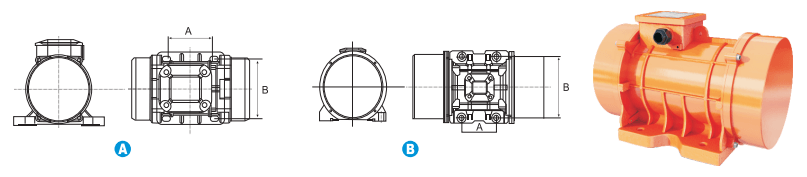

No.	Model	Force（KN）	Power（KW）	Weight（KG）	Installation Size
No.	Model	Force（KN）	Power（KW）	Weight（KG）	A	B
1	MV40/3	0.3	0.05	4	62-74	106
2	MV60/3	0.7	0.07	4.2	62-74	106
3	MV100/3	1	0.09	4.6	62-74	106
4	MV200/3	2	0.15	6.8	62-74	106
5	MV300/3	3	0.25	9.8	90	125
6	MV400/3	4	0.27	10.3	90	125
7	MV500/3	5	0.5	15.8	105	140
8	MV700/3	7	0.59	16.5	105	140
9	MV800/3	8	0.7	20.6	120	170
10	MV1200/3	10	0.95	21.6	120	170
11	MV1300/3	13	1.3	24.5	120	170
12	MV1600/3	16	1.54	51.6	140	190
13	MV1800/3	18	1.85	52	140	190
14	MV2000/3	20	2.1	51.8	140	190
15	MV2200/3	22	2.4	52.8	140	190
16	MV2300/3	23	2.4	53.6	140	190
17	MV3200/3	32	2.76	96.9	155	255
18	MV4000/3	40	2.9	107	155	255
19	MV5000/3	50	4	112	155	255
52	MV60/3M	0.7	0.08	4.5	62-74	106
53	MV100/3M	1	0.1	5.1	62-74	106
54	MV200/3M	2	0.13	6.8	62-74	106
55	MV50DC-24	0.5	0.1	4.5	62-74	106
56	MV200DC-24	2	0.16	6.5	62-74	106
