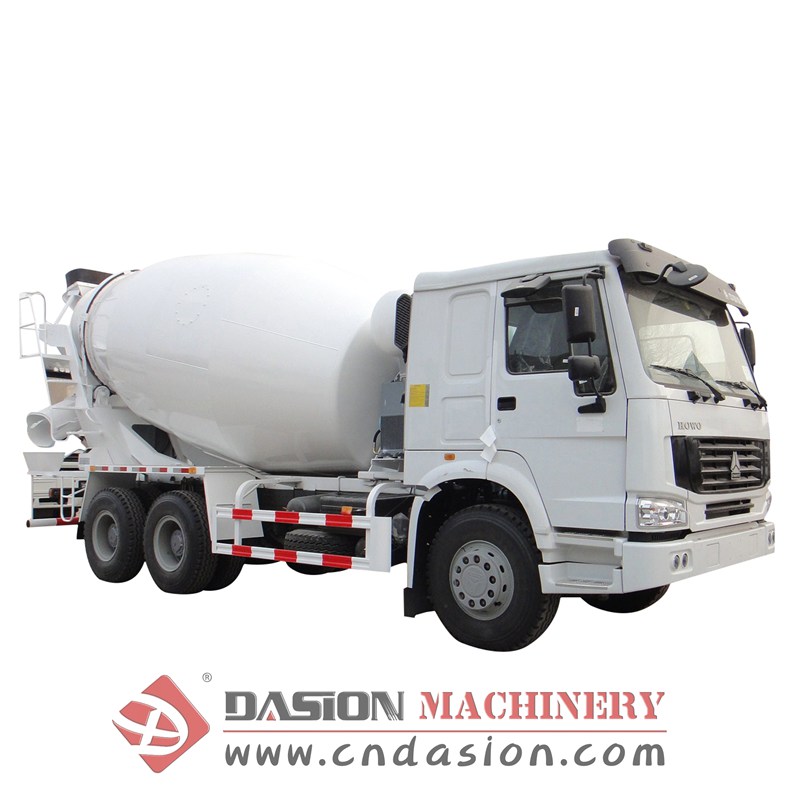

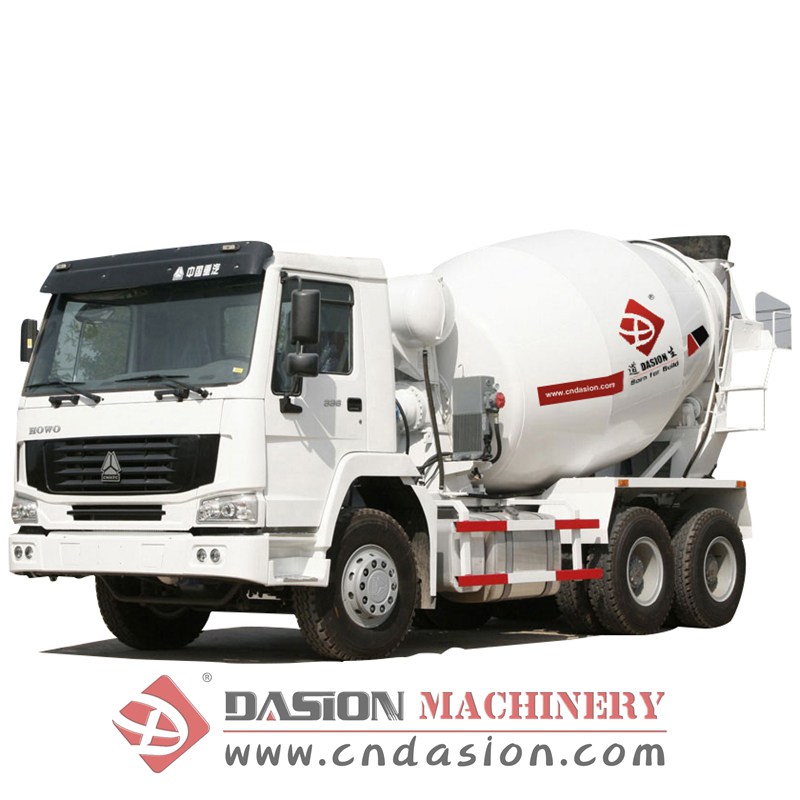

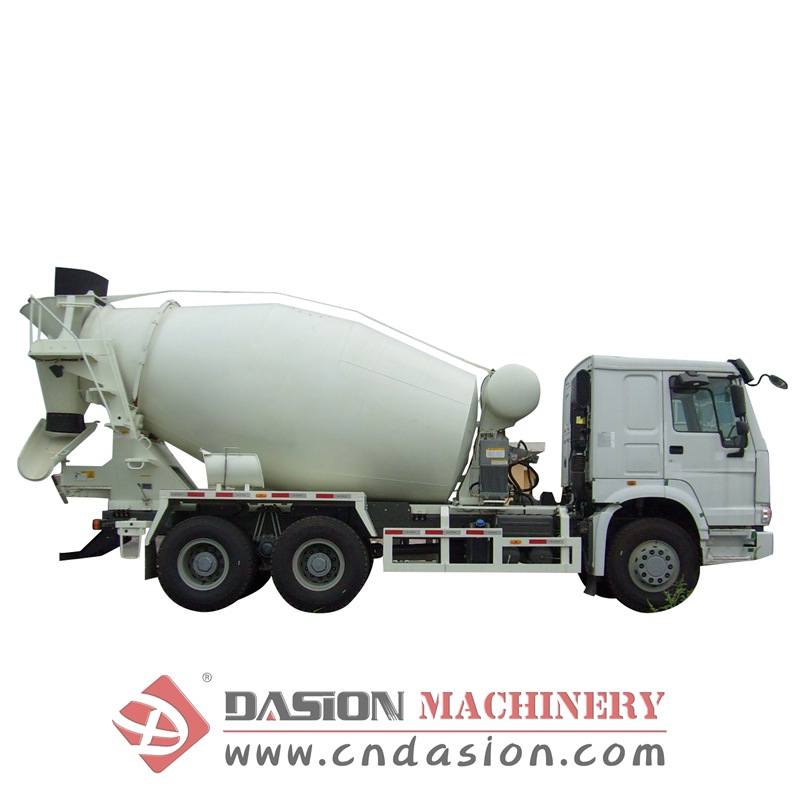

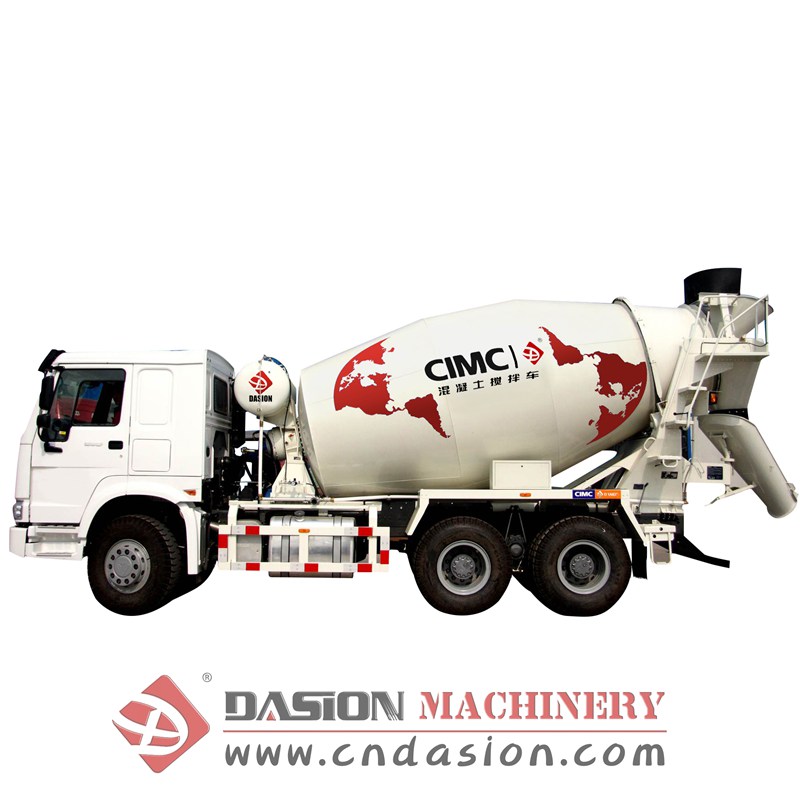

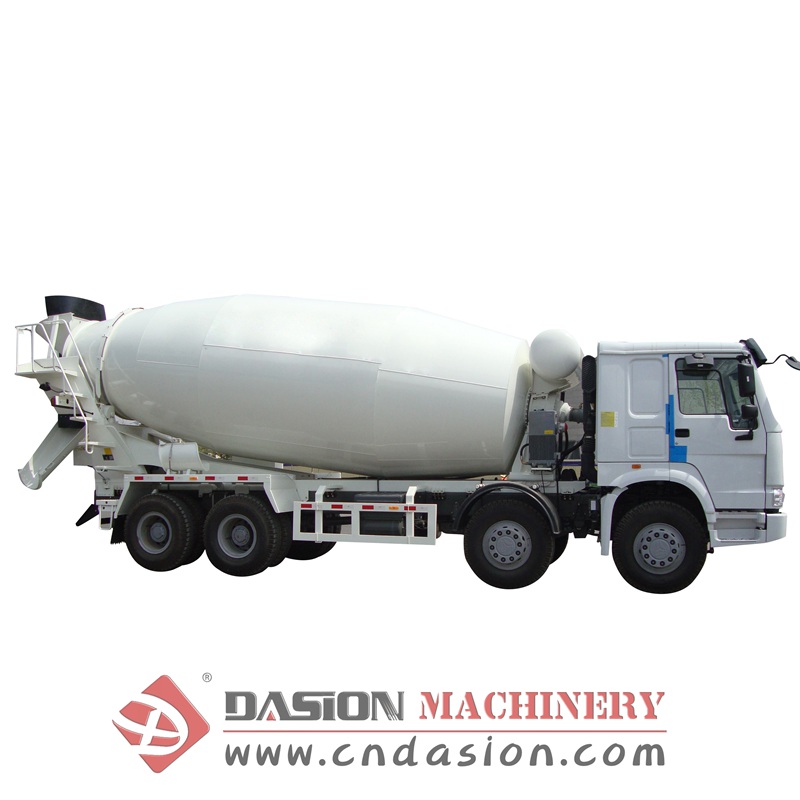

Concrete Truck Mixer

Mixing capacity: 4-18m3
Feeding speed: ≥2/3m3/min
Mixing speed: 0-14r/min
Discharge residue rate: ≤0.5%
Capacity of water tank: 150-450L
Water supply method: Pneumatic

DASION series concrete truck mixer adopts European modern style, featuring attractive appearance, rational structure and stable performance.Different steel materials for different parts of tank body, which is made from China famous steel factories.

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC Portable Concrete Mixer JZM Electrical Concrete Mixer JZR Diesel Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

concrete truck mixer

Concrete Truck Mixer Concrete Mixing Drum DS2.5 Self-loading Concrete Mixer Truck DS1.5/1.5F Self Loading Concrete Mixer Truck

concrete pump

JBT/DJBT Concrete Mixer Pump Motor Concrete Trailer Pump Concrete Boom Pump Diesel Concrete Trailer Pump Fine Stone Concrete Pump Truck Mounted Concrete Pump Truck Mounted Concrete Mixer Pump

concrete placing boom

Stationary Concrete Placing Boom Mobile Concrete Placing Boom Self-Climbing Concrete Placing Boom

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

Electric Poker Concrete Vibrator Diesel Engine Poker Concrete Vibrator Pneumatic Motor Poker Vibrator High-speed Railway Track Board Oscillator Equipment

Product Information
parameters introduction
Product Details

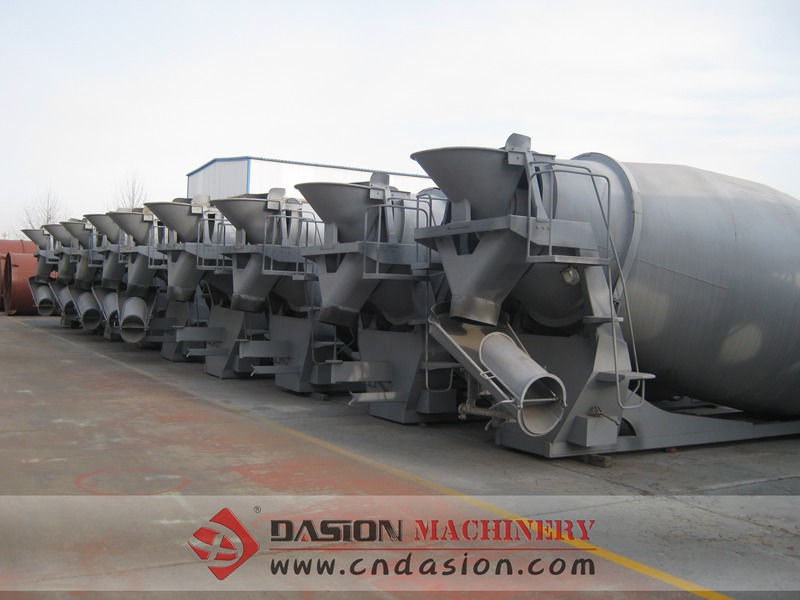

Brief Introduction of Concrete Truck Mixer

DASION series concrete truck mixer adopts European modern style, featuring attractive appearance, rational structure and stable performance. Different steel materials for different parts of tank body, which is made from China famous steel factories. Service life is 1.5 times than average.
Adopt CNC plasma equipment and leading international fixtures, ensure the accuracy of the parts manufacturing key weld using CNC automatic welding production lines to ensure the weld strength. Modular design and assembly line keeps product quality consistency. Structure parts adopt blasting pretreatment process; Painting work used luxury coach paint process, completely in accordance with the coating process of industry leading technology, effectively guarantee the quality of the vehicle.
DASION series concrete mixer truck covers mixing capacity 3-20m3 all volume products, mainly adopts ISUZU/SINOTRUK/NISSAN/HINO/FOTON/DFM-Dongfeng/FAW-Jiefang/SHACMAN/Auman/JAC/North-BENZ, etc. Special upper tank projects for special chassis, to make each other match reasonable.

Upper drum capacity	Optional Chassis Brand	Chassis Parameters
4m3, 6m3	Forland	Overall dimension (LWH)(mm)	6460x2255x3300
		Chassis model	BJ1143VJPFA-1
		Engine model/power (KW)	YC4D130-33/96
		Emission standard	Euro-III
		Tyres/Brake	825-20/Air brake
		Wheel base（mm）	3400
		Angle of approach/departure（°）	30/15
	Tangjun	Overall dimension (LWH)(mm)	7025x2285x3570
		Chassis model	ZB3160TPE3F
		Engine model/power (HP)	YC4D130-41/96
		Emission standard	Euro-III
		Tyres/Brake	900-20/Air brake
		Wheel base（mm）	3500
		Angle of approach/departure（°）	20/16

Upper drum capacity	Optional Chassis Brand	Chassis Parameters
8m3, 9m3, 10m3,12m3	DFM-Dongfeng	Overall dimension(LWH)(mm)	9320x2500x3990 9740x2500x3990
		Chassis model	DFL5251GJBA4
		Engine model/power (HP)	dCi350-40/350
		Emission standard	Euro IV
		Kerb mass/Rated load mass（kg）	15800/9005, 9070
		Wheel base（mm）	3650+1350 3800+1350 4000+2350
		Angle of approach/departure（°）	30/15
	SHACMAN	Overall dimension(LWH)(mm)	9415x2500x3990 9875x2500x3990
		Chassis model	SX5256GJBDR404
		Engine model/power (HP)	WP10.336E40/336
		Emission standard	Euro IV
		Kerb mass/Rated load mass（kg）	15390/9480, 9415
		Wheel base（mm）	3775+1400 3975+1400
		Angle of approach/departure（°）	20/16
	AUMAN	Overall dimension(LWH)(mm)	9970x2500x3990
		Chassis model	BJ5253GJB-XA
		Engine model/power (HP)	WP12.375E40/375
		Emission standard	Euro IV
		Kerb mass/Rated load mass（kg）	16100/8705
		Wheel base（mm）	4100+1350
		Angle of approach/departure（°）	22/16
Upper drum capacity	Optional Chassis Brand	Chassis Parameters
12m3, 14m3,	FAW-Jiefang	Overall dimension(LWH)(mm)	9880x2500x3990 10390x2500x3990
		Chassis model	CA5250GJBP66K2L2T1E4
		Engine model/power (HP)	CA6DL2-35E4/350
		Emission standard	Euro IV
		Kerb mass/Rated load mass（kg）	15960/8910, 8845
		Wheel base（mm）	4050+1350 4300+1350
		Angle of approach/departure（°）	23/16
	SINOTRUK	Overall dimension(LWH)(mm)	10650x2500x3990
		Chassis model	ZZ1257N434HD1
		Engine model/power (HP)	MC11.32-40/320
		Emission standard	Euro IV
		Kerb mass/Rated load mass（kg）	16200/8670
		Wheel base（mm）	4325+1350
		Angle of approach/departure（°）	20/16
18m3,	SINOTRUK	Overall dimension(LWH)(mm)	11390x2500x3990
		Chassis model	ZZ1317N3667D1
		Engine model/power (HP)	D10.38-40/380
		Emission standard	Euro IV
		Kerb mass/Rated load mass（kg）	17960/12910
		Wheel base（mm）	1800+3600+1350 1800+3825+1350
		Angle of approach/departure（°）	19/13
	DFM-Dongfeng	Overall dimension(LWH)(mm)	10910x2500x3990
		Chassis model	DFL5310GJBA1
		Engine model/power (HP)	dCi385-40/385
		Emission standard	Euro IV
		Kerb mass/Rated load mass（kg）	17600/13270
		Wheel base（mm）	1850+3400+1350
		Angle of approach/departure（°）	25/15

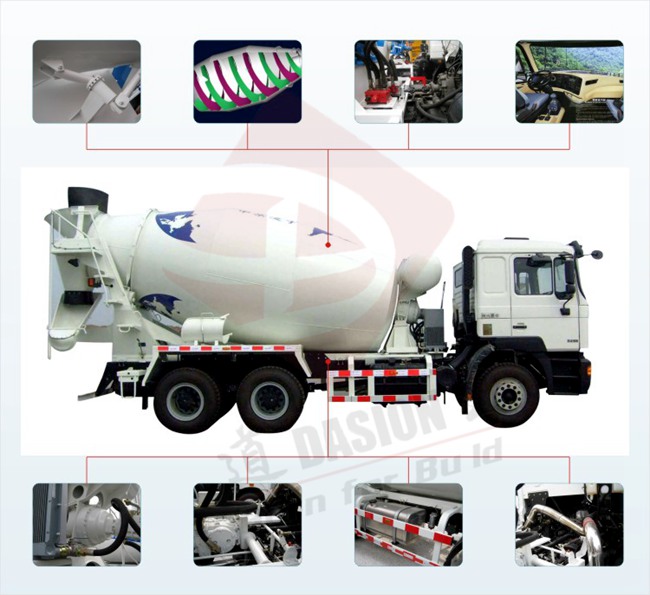

Features of Concrete truck mixer

1. Long service life
Wuhan steel, Baoshan steel material, different thickness for different parts, wear-rib on blades. Service life is 1.5 times than average.
2. Unique structure
Revised logarithmic spiral blades, special mold cold press molding, to ensure speed of concrete feeding and discharging, concrete mixing is more uniform; Blades and drum body by new welding process without obvious trance.

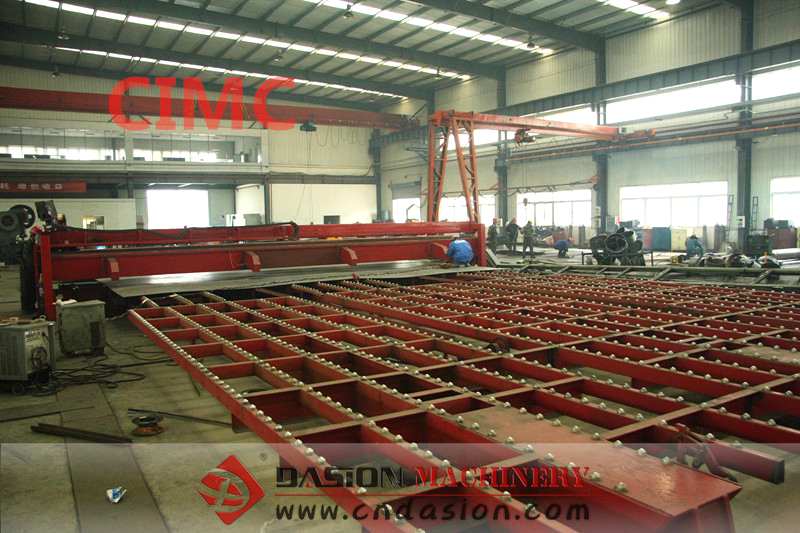

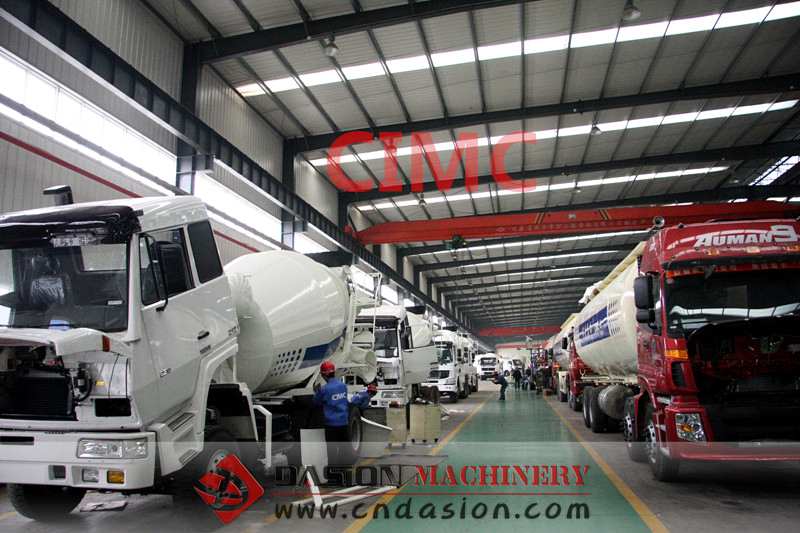

3. Excellent assembly and manufacturing processes
CNC cutting equipment, Automation Welding Machine, Industrial Fixtures, Automatic robot welding production line, to ensure products quality.
4. Paten technology

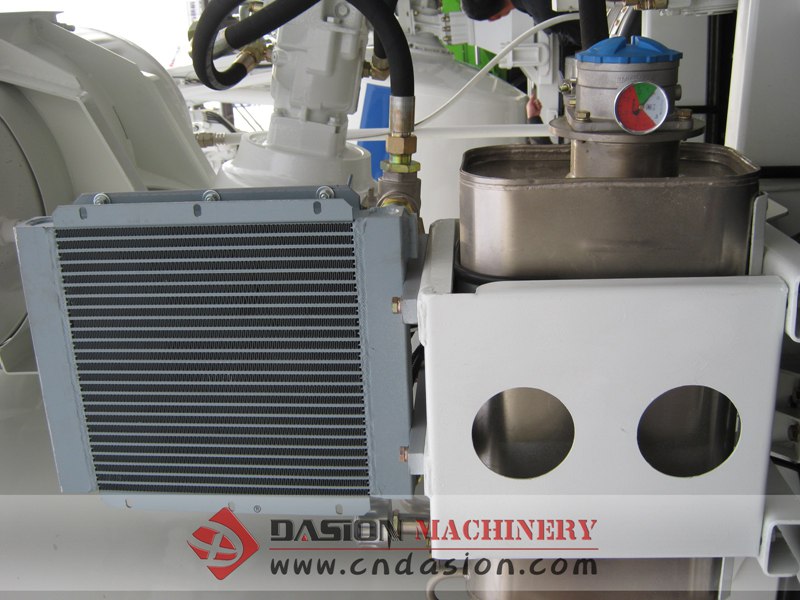

Mixing blades, anti-torque secondary beam, water tank heating device, etc.
5. Bus baking varnish
Fifteen thousand square meters workshop for painting, 16 process baking system, polyurethane finish coat, to keep mixing tank bright and long lasting.

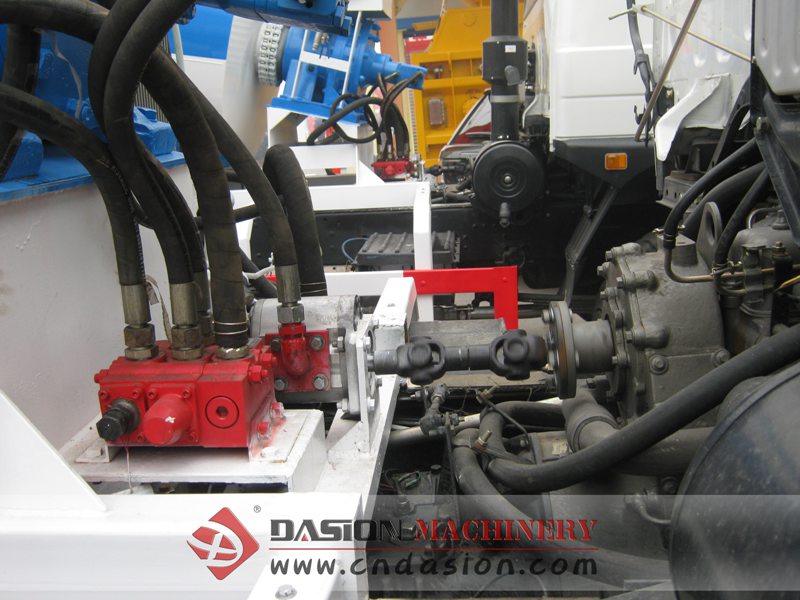

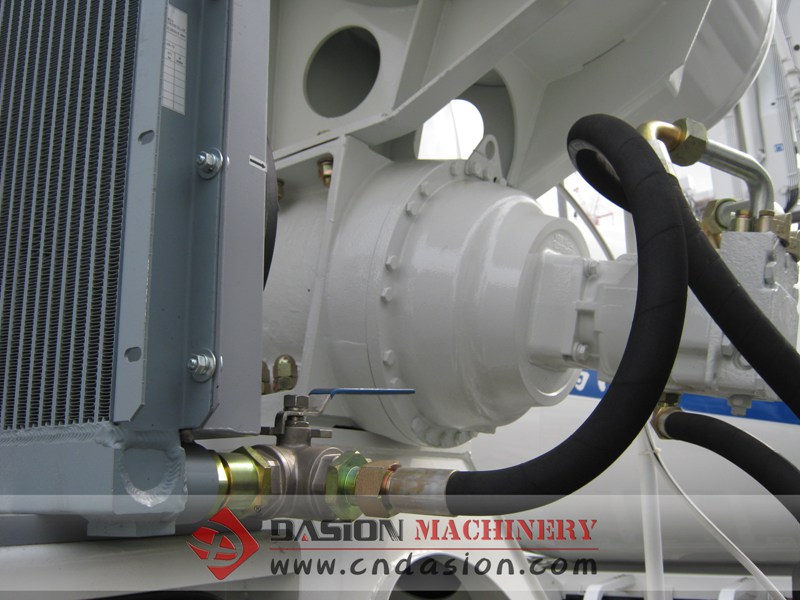

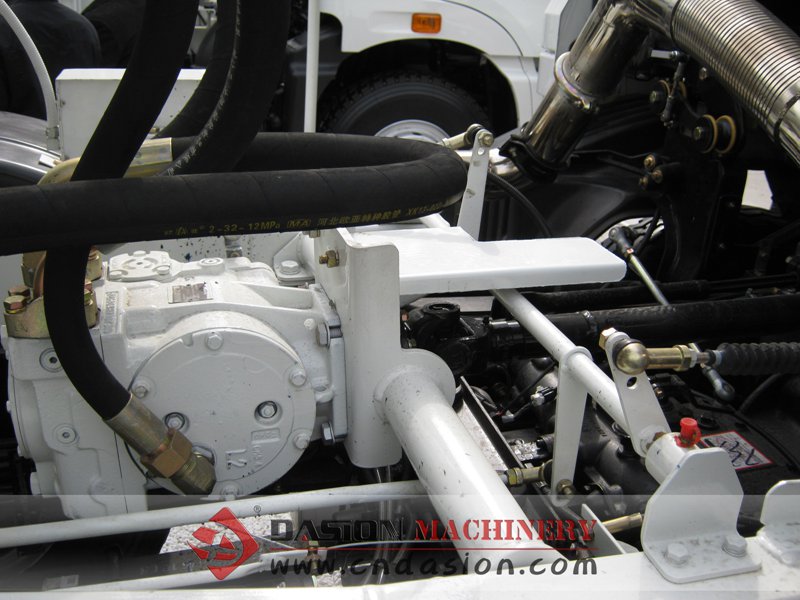

6. High-level configuration of hydraulic system
Hydraulic system adopt international top-brand, such as Germany, Italian, American brand with integral structure, excellent performance
7. Control system for operator
Adopts three-point control mode, that means operator can control the drum easily and conveniently, by control-bar on both rear-sides and in-cab device.
8. More humanization design
Large power tail-lamp at rear part, for night working and safety.
Self-locking in cab, to prevent from mistake operation and ensure security.

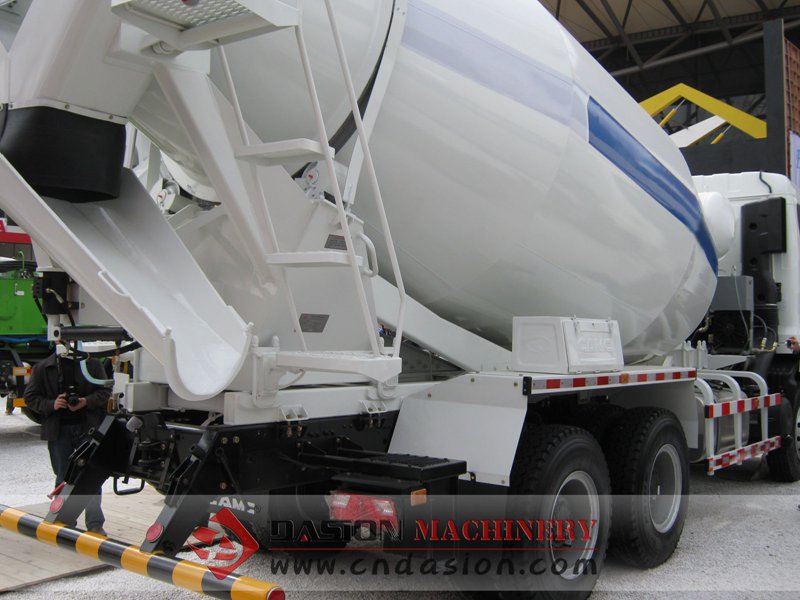

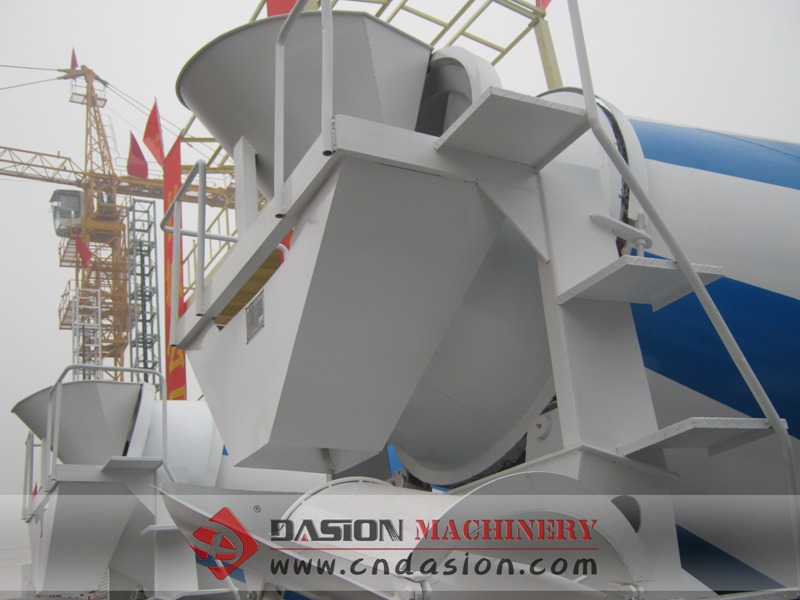

Step area adopt pressed steel and attractive appearance, reasonable handrail ensuring safety.
Smart equipment can be assembled on the truck mixer to meeting various clients’ requirement, for example, Remote Operation, Water Metering, Tank-input Sealing, etc
9. Multi types of Chassis Matched
The upper mixing drum capacity is from 3m3 to 20m3 all volume products.
The model of chassis match: ISUZU/SINOTRUK/NISSAN/HINO/FOTON/DFM-Dongfeng/FAW-Jiefang/SHACMAN/Auman/JAC/North-BENZ, etc
