Diesel Engine Poker Concrete Vibrator

The diesel driven flexible shaft planetary poker vibrator is widely used in the vibration of various plastic, semidry and dry concrete in the construction.

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC/JZM Portable Concrete Mixer JZM Electrical Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

Self-loading concrete truck mixer

Concrete Truck Mixer DS2.5 Self-loading Concrete Mixer Truck DS1.5/1.5F Self Loading Concrete Mixer Truck

concrete pump

JBT/DJBT Concrete Mixer Pump HBT Motor Concrete Trailer Pump DHBT Diesel Concrete Trailer Pump Concrete Boom Pump

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

Electric Poker Concrete Vibrator Diesel Engine Poker Concrete Vibrator Pneumatic Motor Poker Vibrator High-speed Railway Track Board Oscillator Equipment

Product Information
parameters introduction
Product Details

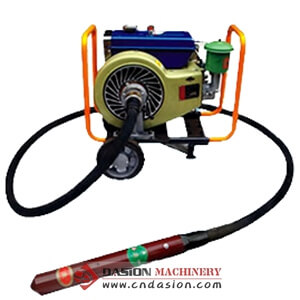

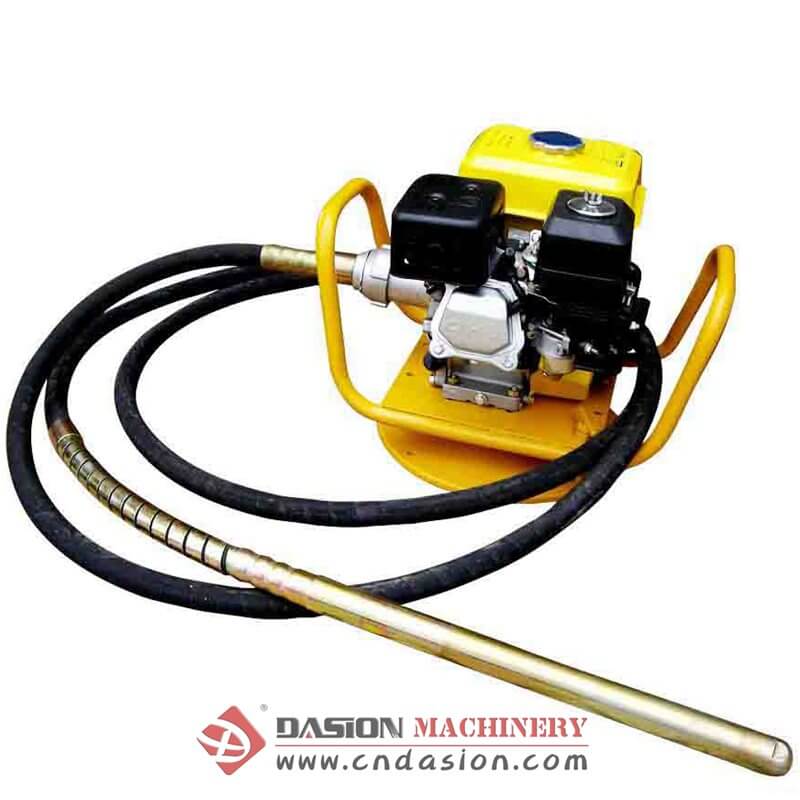

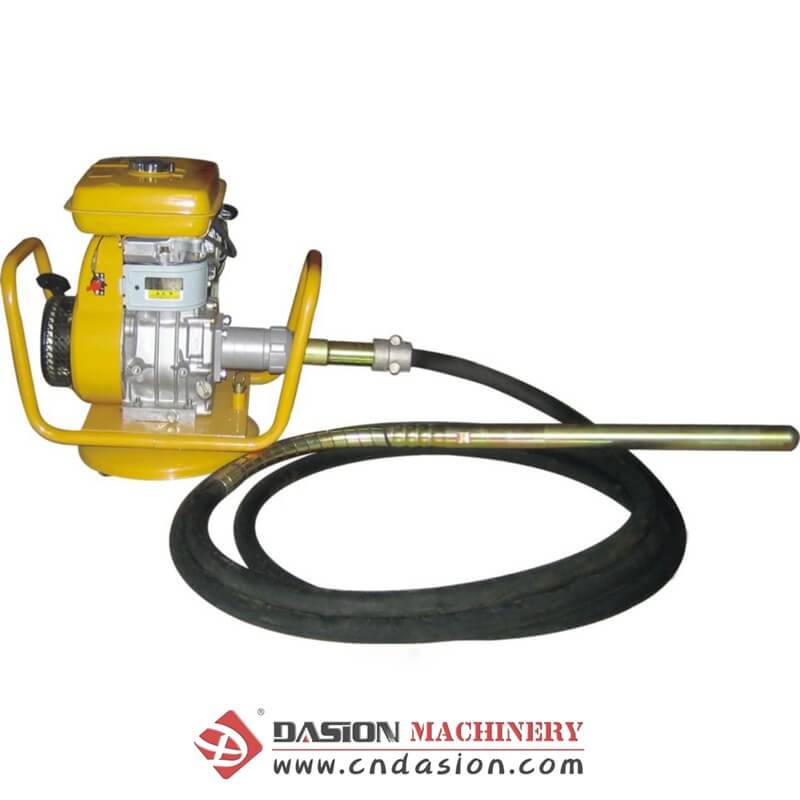

Brief Introduction of Diesel Engine Poker Concrete Vibrator
The diesel driven flexible shaft planetary poker vibrator is widely used in the vibration of various plastic, semidry and dry concrete in the construction. It is suitable for concrete cast-in-site of various bridges, tunnels, building foundation, precast units, beams and columns in remote districts, especially an indispensable tool in various concrete construction sites where there is no electricity or in the condition of power cut.

Features of Diesel Engine Poker Concrete Vibrator
The poker uses double oil-seals with a high sealing performance. The diesel engine features low diesel consumption, easy operation, convenience maintenance, stable running and one engine with multifunction.

Please fill in your procurement needs and contact information

Type	Freq. （HZ）	Amplitude （mm）	Poker dia. （mm）	Flexible shaft dia. （mm）	Hose dia. （mm）	Power （kw）	Revolution （r/min）	Diesel consumption （g/Rs-hr）	Weight （kg）
ZNC35	225	0.8	36	10	30	1.47	2600	245	70
ZNC50	200	1	51	13	36	1.47	2600	245	72
ZNC70	200	1.2	68	13	36/46	1.47	2600	245	75
