Pneumatic Motor Poker Vibrator

The patented pneumatic vibrator developed by our company is widely used in vibration the large concrete prefabricated components and draining off in the water conservancy and power worksite.

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC/JZM Portable Concrete Mixer JZM Electrical Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

Self-loading concrete truck mixer

Concrete Truck Mixer DS2.5 Self-loading Concrete Mixer Truck DS1.5/1.5F Self Loading Concrete Mixer Truck

concrete pump

JBT/DJBT Concrete Mixer Pump HBT Motor Concrete Trailer Pump DHBT Diesel Concrete Trailer Pump Concrete Boom Pump

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

Electric Poker Concrete Vibrator Diesel Engine Poker Concrete Vibrator Pneumatic Motor Poker Vibrator High-speed Railway Track Board Oscillator Equipment

Product Information
parameters introduction
Product Details

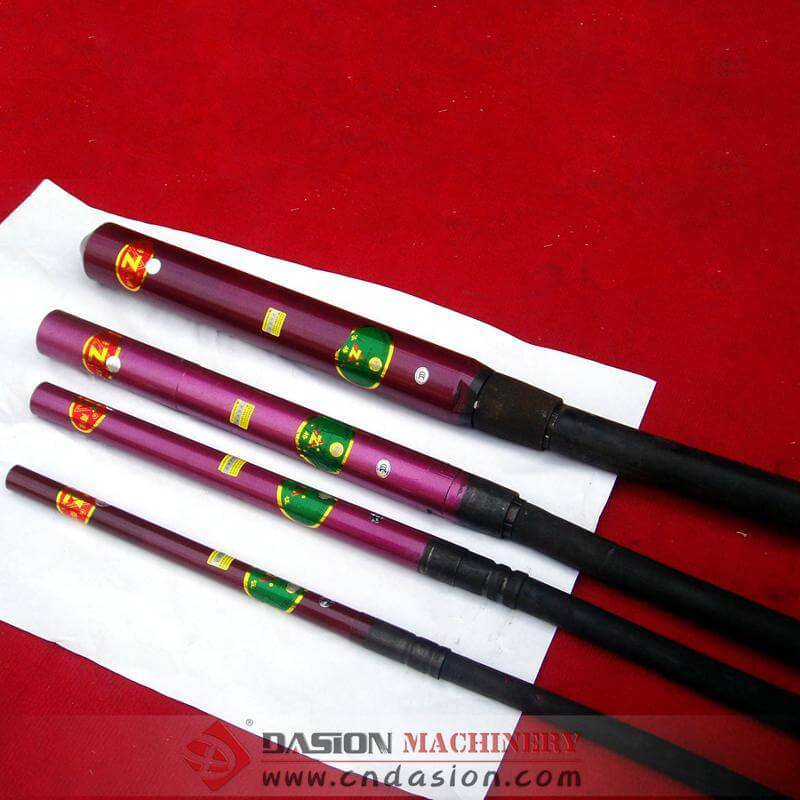

Brief Introduction of Pneumatic Motor Poker Vibrator
The patented pneumatic vibrator developed by our company is widely used in vibration the large concrete prefabricated components and draining off in the water conservancy and power worksite ,high-story building , mine and under mine shaft, it can also be used as vibrating source of the vibrating apparatus ,especially the worksite filled with gas to ensure the safety .

Features of Pneumatic Motor Poker Vibrator
The poker uses double oil-seals to prevent oil leaking. It features long service lift, small size, light weight and easy carry. It has a safer operation and wider application for its needless power supply.

Please fill in your procurement needs and contact information

Pneumatic motor	Rated revolution （r/min）	Air pressure available (Mpa)	Loaded air consumption (m3/min)	Inner dia. of the inlet pipe (mm)
Pneumatic motor	3000	0.4-0.5	1.5-1.7	25
Poker	Freq. (HZ)	Amplitude (mm)	Flexible shaft dia. (mm)	Hose dia. (mm)
Poker	200	1.15	13	36
