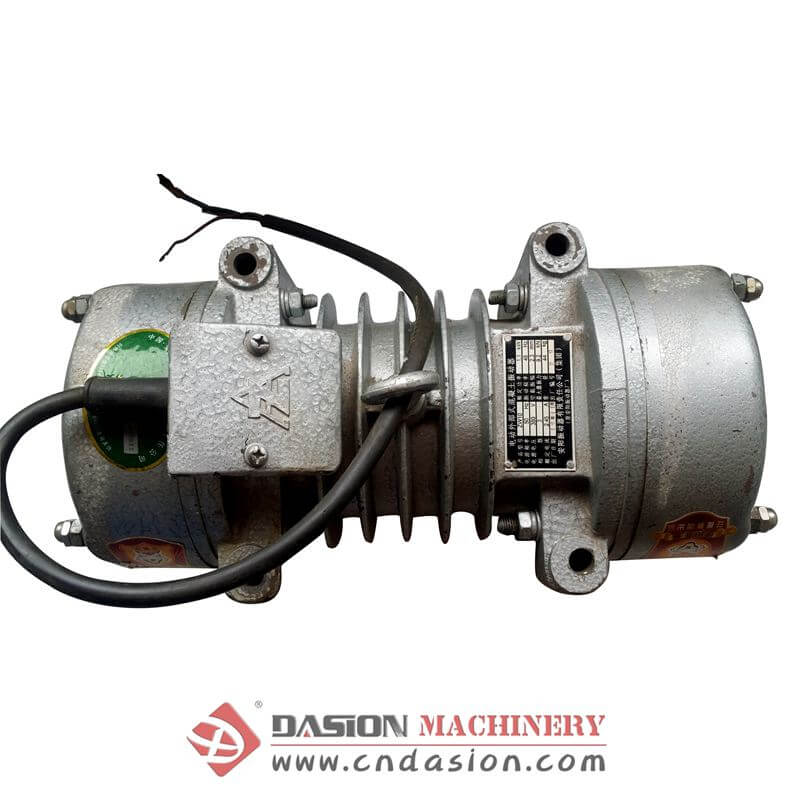

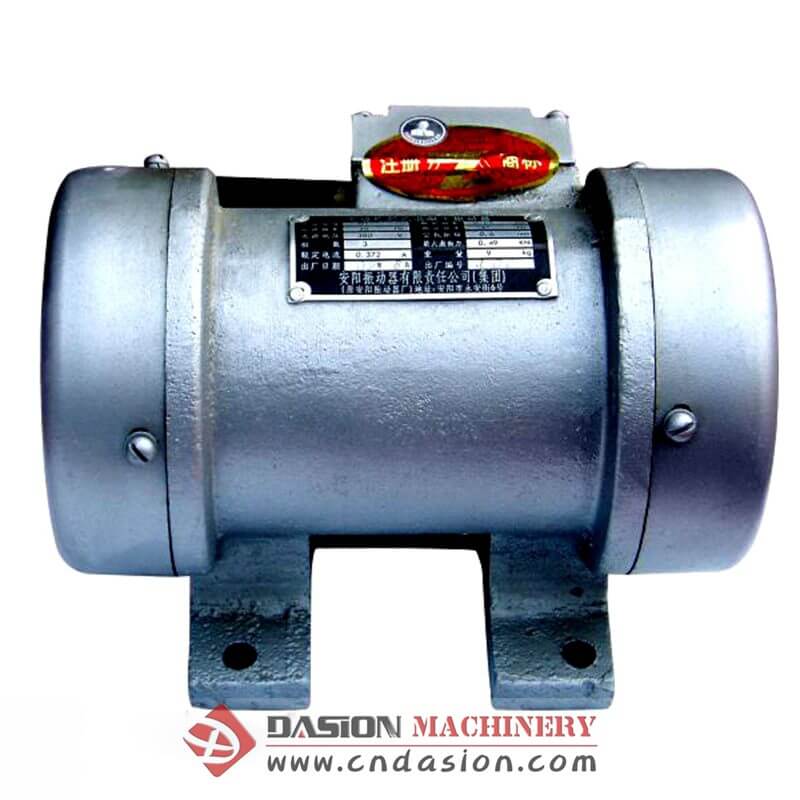

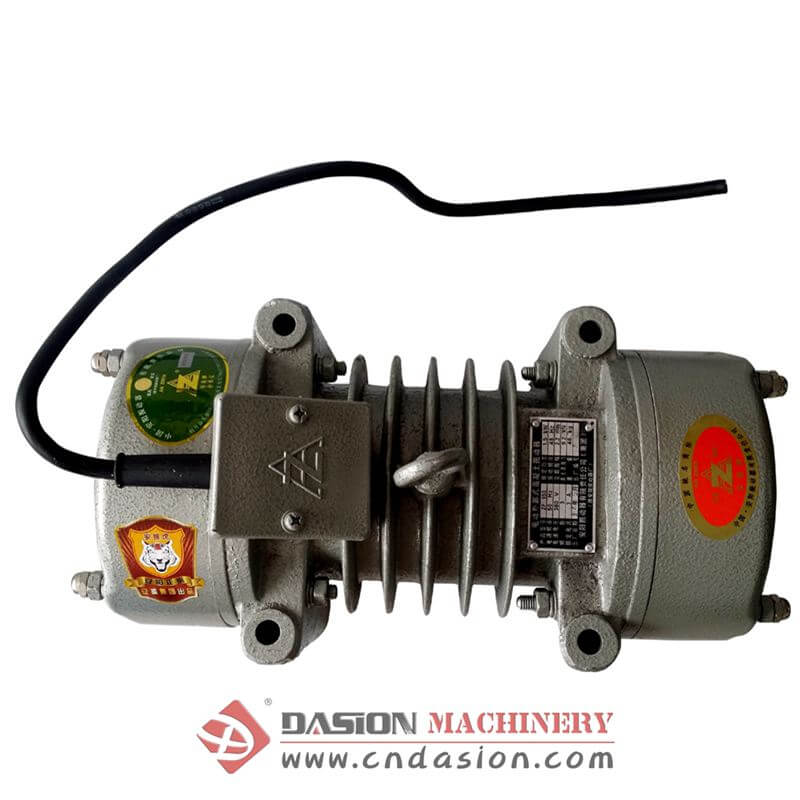

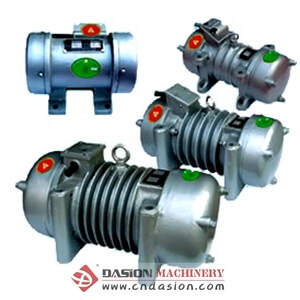

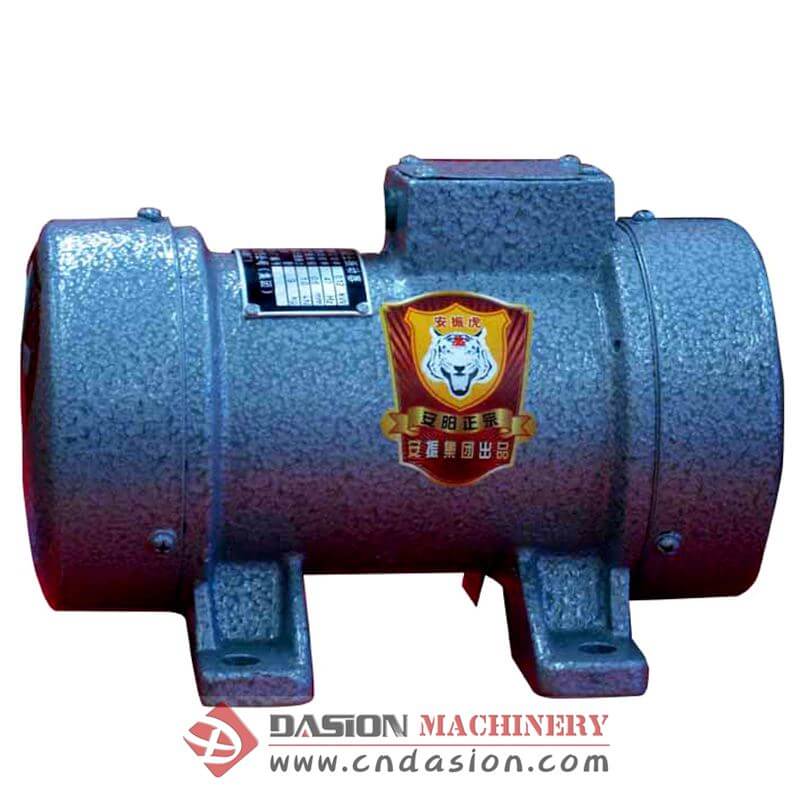

Introduction of Electric External Concrete Vibrator
The external vibrators are widely used in the vibration of plastic, semi-plastic, semidry, and dry concrete, suitable tools for the concrete cast of slabs, road surface, ground and roofing in buildings. They can also be used as vibrating source of vibrating apparatus.
Type ZJY20 vibrator is designed against extrusion molding press, which makes the pre-stressed hollow floor slabs. It can continuously operate for a long time.

Features of Electric External Concrete Vibrator
It uses special vibrating motor with unique eccentric structure. The exciting force can be adjusted for the construction situation.


Parameters of Electric External Concrete Vibrator
Type Unit ZW5 ZW10 ZF220 ZW20 ZJY20 ZW5A ZW10B ZF1 ZF150A
Motor power Kw 0.8 1.1 2.2 3 2 0.8 1.1 0.12 1.5
Voltage V 380 380 380 380 380 380 380 380 380
Supply freq. HZ 50 50 50 50 50 50 50 50 50
Vibration freq. HZ 48 48 48 48 48 48 48 47 48
Exciting force N 4200 9200 11000 15000 14000 3000 6700 500 9200
No-load amplitude mm 1.5 2.3 2.0 1.8 1.9 1.5 2.3 0.6 2.0
Phase Ph. 3 3 3 3 3 3 3 3 3
Electric current A 1.74 2.45 4.6 4 4 1.74 2.45 0.372 3.3
Weight Kg 35 44 55 90 83 35 44 9 52
