Electric Poker Concrete Vibrator

The poker vibrators are widely used in the vibration of plastic, semidry and dry concrete.

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC/JZM Portable Concrete Mixer JZM Electrical Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

Self-loading concrete truck mixer

Concrete Truck Mixer DS2.5 Self-loading Concrete Mixer Truck DS1.5/1.5F Self Loading Concrete Mixer Truck

concrete pump

JBT/DJBT Concrete Mixer Pump HBT Motor Concrete Trailer Pump DHBT Diesel Concrete Trailer Pump Concrete Boom Pump

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

Electric Poker Concrete Vibrator Diesel Engine Poker Concrete Vibrator Pneumatic Motor Poker Vibrator High-speed Railway Track Board Oscillator Equipment

Product Information
parameters introduction
Product Details

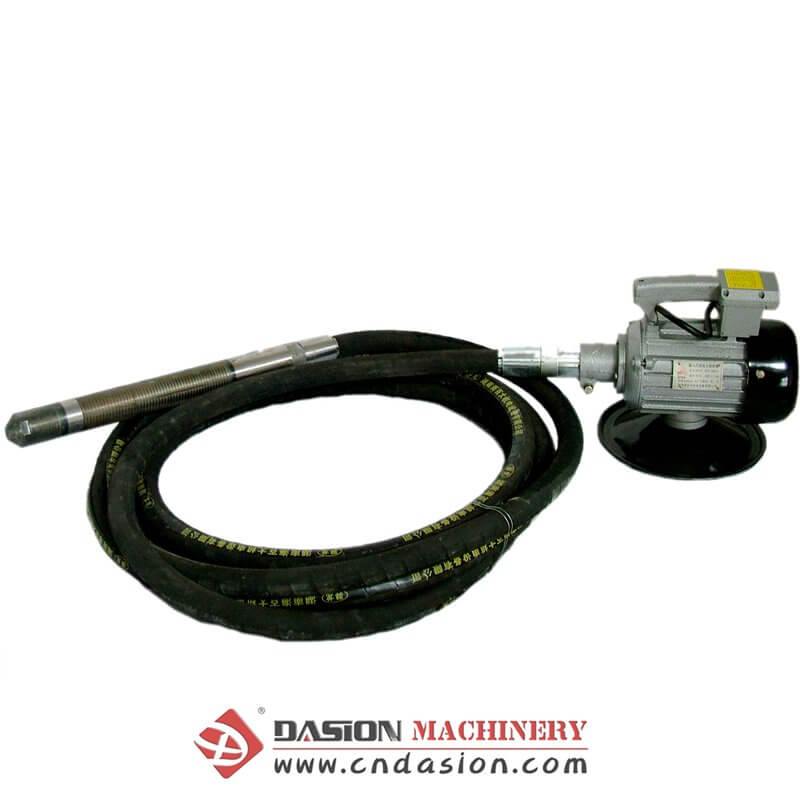

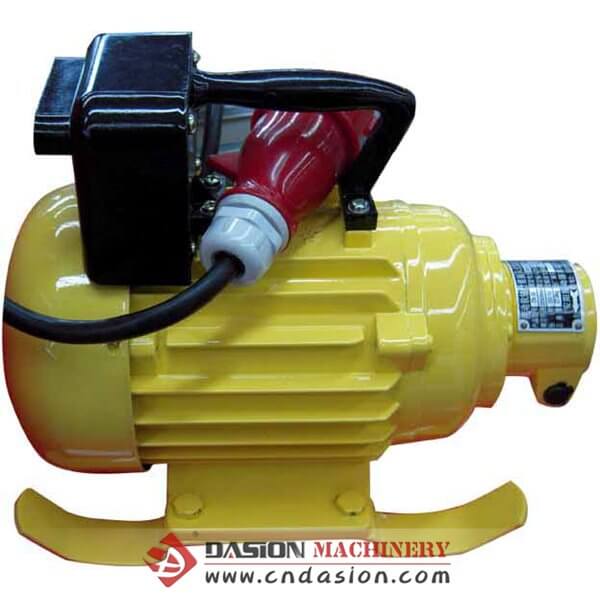

Brief Introduction of Electric Poker Concrete Vibrator
The poker vibrators are widely used in the vibration of plastic, semidry and dry concrete. They are the indispensable tools in the constructions of bridges, tunnels, building foundation, precast units, and the cast-in-site of beams and columns.

Features of Electric Poker Concrete Vibrator

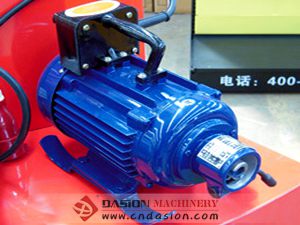

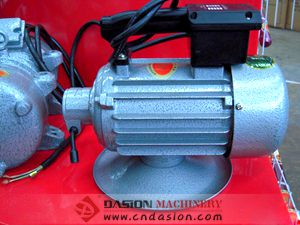

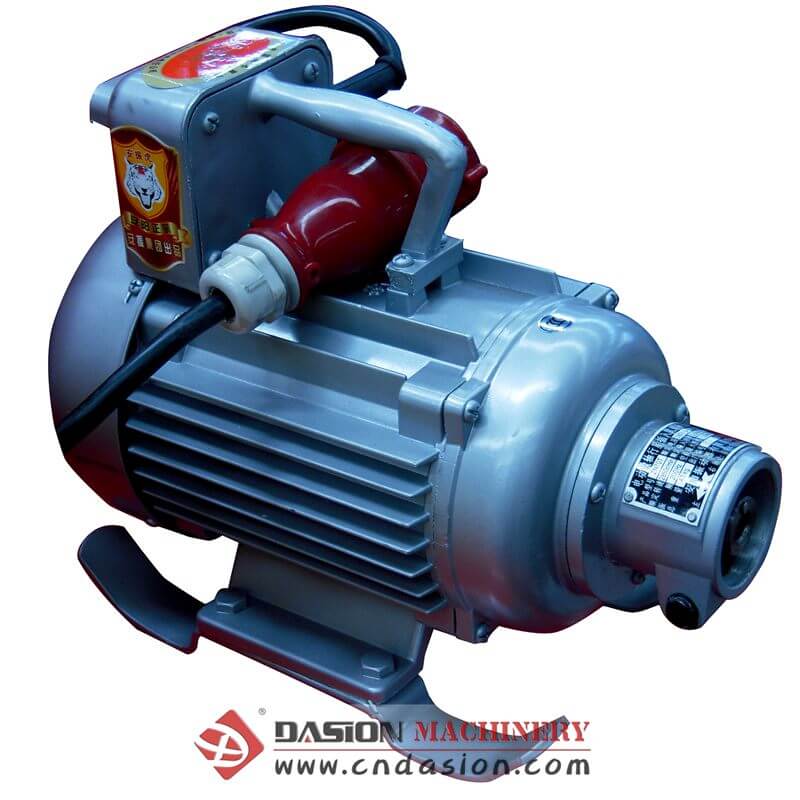

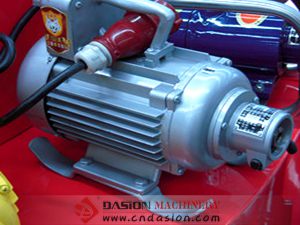

The poker uses double oil-seals with a high sealing performance. It can prevent the slip when the oil penetrating. The motor is special with small size, light weight and easy carry. It also has a unique anti-reverse device with pushbutton mode. The anti-reverse is reliable.

Please fill in your procurement needs and contact information

Type	Vibration parameters			Dia. of poker (mm)	Dia. of the flexible shaft and hose		Electric motor			Total weight(KG)
Type	Vibration Freq. (Hz)	Max. amplitude of unloaded vibration (mm)	Productivity (m3/h)	Dia. of poker (mm)	Flexible shaft dia. (mm)	Hose dia. (mm)	Revolution (r/m)	Input power (KW)	Power supply	Total weight(KG)
ZN25	250	0.5	3	26	8	26	2850	1.3	3ph 50Hz 380V	20
ZN35	225	0.8	7	36	10	30	2850	1.3		21
ZN50	200	1.15	13	51	13	36	2850	1.3		29
ZN50C	200	1.15	13	51	12	36/46	2850	1.3		34
ZN70G	200	1.35	23	68	13	36/46	2850	1.8		41
ZN70T	200	1.35	23	68	13	36/46	2850	2.68		43
